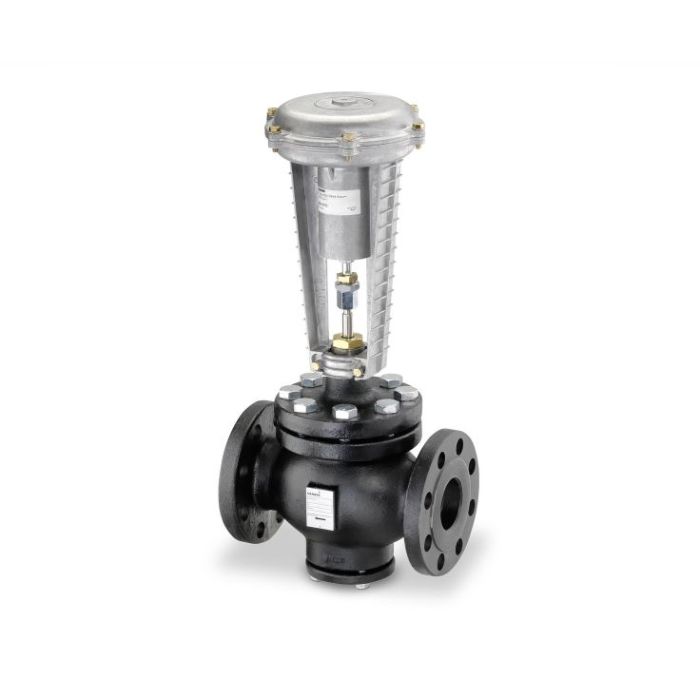

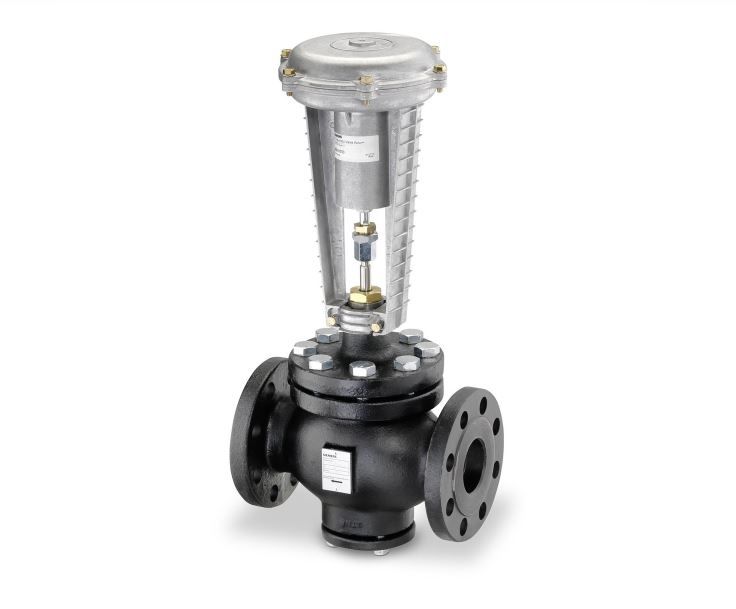

Siemens 283-05971 Globe Valve Assembly 2 Way 3 in.

Product Description

The Siemens Globe Valve Assembly, MPN 283-05971, is a two-way valve ideal for various pneumatic control applications. This valve features a flanged design and a body built for durability. It is equipped with a pneumatic valve actuator that has an eight-inch length and offers a three-quarters of an inch stroke. The valve operates with a span of five psi and includes a factory-mounted positioner, making it a reliable choice for HVAC systems.

• Flanged with 100 Cv rating.
• Includes a factory-mounted positioner.
• Normally closed operation.

Product Highlights

This globe valve is designed for efficient flow control in saturated steam, water, and glycol solutions.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 283-05971

Technical Specifications

• Service: Saturated Steam, Water, Glycol Solutions To 50%
• Mounting Type: NEMA 1
• Close-Off Pressure: 23 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 20 F To 250 F (-7 C To 120 C)
