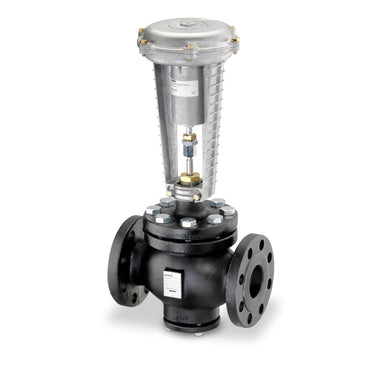

Siemens 283-05970 Globe Valve Assembly, 2 Way, 2-1/2 in.

Product Description

The Siemens Globe Valve Assembly, MPN 283-05970, is a two-way valve measuring two and a half inches. This valve features a flanged design ideal for pneumatic applications. It has a Cv of sixty-three and includes stainless steel trim for durability. The valve actuator has a stroke of three-quarters of an inch and operates within a span of five psi. The air connection is one-eighth inch NPT and the assembly includes a factory-mounted positioner, operating in a normally closed configuration.

• Flanged construction for easy installation
• Includes factory-mounted positioner
• Suitable for saturated steam, water, and glycol solutions

Product Highlights

This valve is designed for use in pneumatic control systems, providing a reliable flow control solution.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 283-05970

Technical Specifications

• Service: Saturated Steam, Water, Glycol Solutions To 50%
• Mounting Type: NEMA 1
• Close-Off Pressure: 36 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 20 F To 250 F (-7 C To 120 C)
