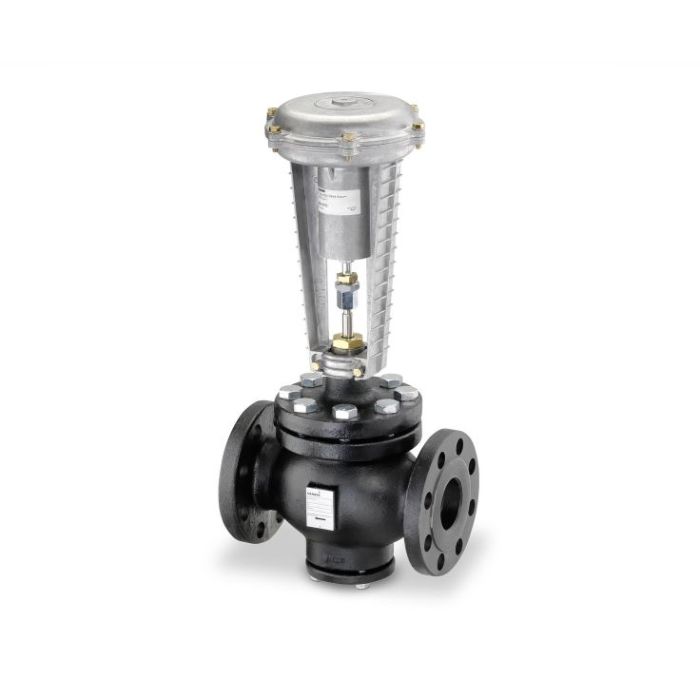

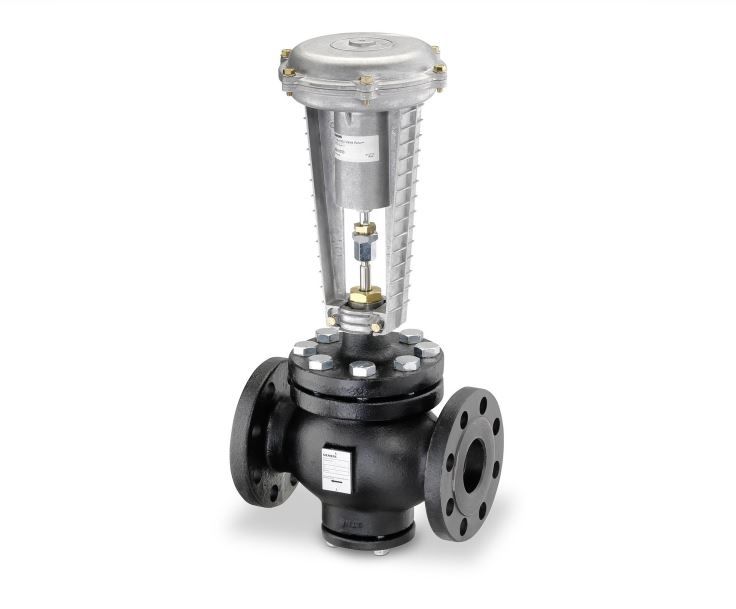

Siemens 283-05930 Globe Valve Assembly, 2 Way, 2-1/2 in.

Product Description

The Siemens 283-05930 is a globe valve assembly designed for efficient control in heating and cooling systems. This valve is suitable for various services, including saturated steam and water applications. It features a two-way design with a flanged connection, making installation simpler.

• ANSI Class 250 rated for durability.
• 63 Cv flow characteristic for effective fluid handling.
• Includes factory-mounted positioner for precise control.

Product Highlights

This valve operates with a pneumatic actuator and has a normally closed position, ensuring safety and reliability in operation.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 283-05930

Technical Specifications

• Service: Saturated Steam, Water, Glycol Solutions To 50%
• Mounting Type: NEMA 1
• Close-Off Pressure: 36 PSI
• Flow Characteristic: Equal Percentage
• Operating Conditions: 20 F To 250 F (-7 C To 120 C)
• Pipe Size: 2.5 in
• Valve Type: 2-Way
• Power Supply: Pneumatic
