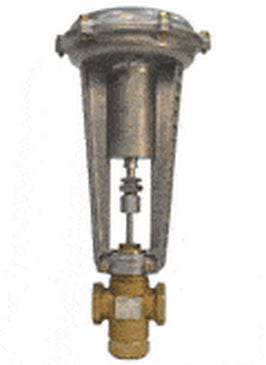

Siemens 283-03198 Globe Valve Assembly, 3 Way, 1/2 in.

Product Description

The Siemens Globe Valve Assembly, 3 Way, MPN 283-03198, is designed for efficient control in pneumatic systems. This valve features a half-inch size and is made for applications that require precise flow regulation. With a built-in positioner, it offers reliable performance in various operational conditions.

• Brass trim with ANSI Class 250 rating.
• Includes factory mounted positioner for accuracy.
• Suitable for water and glycol solutions with a service capability up to fifty percent.

Product Highlights

This globe valve is engineered for longevity and efficient operation in HVAC applications.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 283-03198

Technical Specifications

• Service: Water, Glycol Solutions To 50%
• Mounting Type: NEMA 1
• Close-Off Pressure: 250 psi
• Flow Characteristic: Equal Percentage (NC Port) And Linear (NO Port)
• Operating Conditions: 20 F To 250 F (-7 C To 120 C)
• Stroke Length: 3/4 inch
• Air Connection: 1/8 inch NPT
• Span: 5 psi
