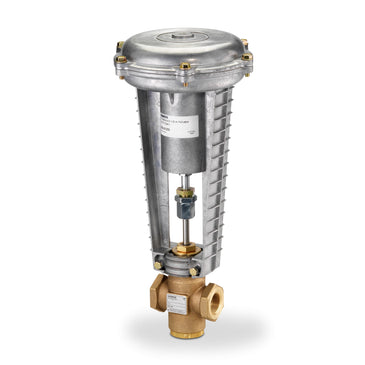

Siemens 283-03184 Globe Valve Assembly, 2 Way, 1/4 in.

Product Description

The Siemens 283-03184 is a globe valve assembly designed for pneumatic control applications. It features a two-way design with a quarter-inch pipe connection. This valve is ideal for applications such as controlling flow in HVAC systems.

• Brass trim with a rated Cv of 6.3 for efficient flow control.
• Includes factory-mounted positioner for precise control.
• Normally closed operation to ensure safety and reliability.

Product Highlights

This valve assembly is constructed to handle a variety of fluids including saturated steam, water, and glycol solutions up to fifty percent concentration.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 283-03184

Technical Specifications

• Service: Saturated Steam, Water, Glycol Solutions To 50%
• Mounting Type: NEMA 1
• Close-Off Pressure: 250 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 20 F To 250 F (-7 C To 120 C)
• Stroke Length: 3/4 in.
• Air Connection: 1/8 in. NPT
