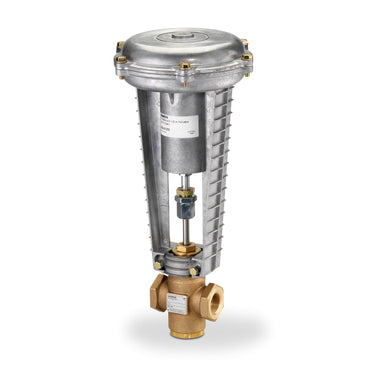

Siemens 283-03078 Globe Valve Assembly, 2 Way, 1-1/4 in.

Product Description

The Siemens Globe Valve Assembly with MPN 283-03078 is a two-way valve designed for pneumatic control applications. This valve features a connection size of one and one-quarter inches with stainless steel trim. It operates on a differential pressure of five psi and is equipped with an eight-inch pneumatic valve actuator, including a factory-mounted positioner for optimal control.

• ANSI Class 250 rated
• Suitable for saturated steam, water, and glycol solutions up to fifty percent concentration
• Primarily used in HVAC pneumatic systems

Product Highlights

Ideal for HVAC applications, this valve ensures reliable operation in regulating fluid flow while maintaining system efficiency.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 283-03078

Technical Specifications

• Service: Saturated Steam, Water, Glycol Solutions To 50%
• Mounting Type: NEMA 1
• Close-Off Pressure: 148 psi
• Flow Characteristic: Linear
• Operating Conditions: 337 F (170 C)
