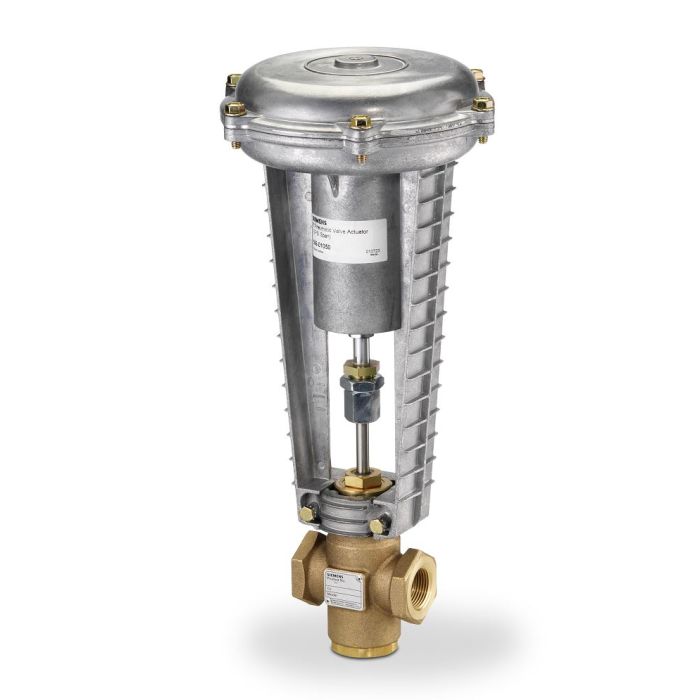

Siemens 283-03025 Globe Valve Assembly, 2 Way, 1-1/2 in.

Product Description

The Siemens Globe Valve Assembly, model 283-03025, is a two-way valve designed for robust pneumatic control applications. This valve features a stainless steel trim and is suitable for handling a variety of fluids, including saturated steam, water, and glycol solutions up to fifty percent concentration. It is designed for installation in HVAC systems and similar environments.

• NPT connection for secure fitting
• Includes factory mounted positioner
• Adjustable for flow requirements

Product Highlights

This valve assembly provides reliable operation with a close-off pressure of ninety-two psi and is suitable for a range of operating conditions from twenty degrees Fahrenheit to two hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 283-03025

Technical Specifications

• Service: Saturated steam, water, glycol solutions to 50%
• Mounting Type: NEMA 1
• Close-Off Pressure: 92 psi
• Flow Characteristic: Linear
• Operating Conditions: 20 F to 250 F (-7 C to 120 C)
• Stroke Length: 3/4 in.
• Air Connection: 1/8 in. NPT
• Cv Rating: 25
