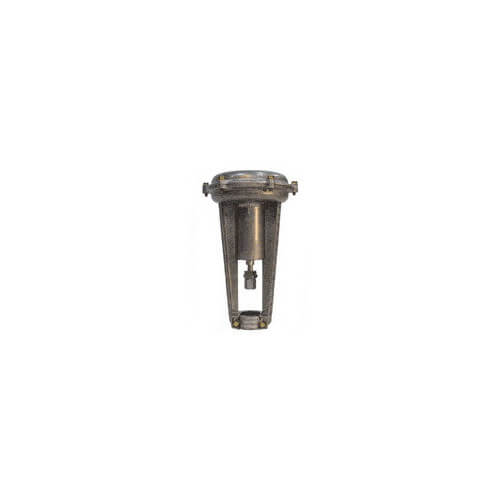

Siemens 277-06160 2-1/2 3-Way Bronze Mixing Valve Actuator Flanged 3/4 Stroke 63 Cv

Product Description

The Siemens 277-06160 is a 2-1/2 inch 3-way bronze mixing valve actuator with a flanged connection and a 3/4 inch stroke. It offers a flow capacity of 63 Cv and is ideal for use in HVAC systems.

• 2-1/2 inch size
• 3-way bronze mixing valve
• 3/4 inch stroke

Product Highlights

This Siemens valve actuator is designed for water and glycol solutions up to 50 percent concentration. Its bronze or stainless steel trim and cartridge-type packing make it suitable for a wide range of applications.

Product Information

Standard Information

• SKU: 277-06160
• Brand: Siemens
• Category: FlowRite Globe Valve Actuator Combos

Technical Specifications

• Size: 2-1/2 inches
• Flow Capacity (Cv): 63
• Stroke: 3/4 inch
• Connection Type: Flanged x Flanged
• Material: Bronze
• Body Pattern: 3-Way
• Spring Range: 3 to 10 psi
• Temperature Range: 35°F to 180°F
• Water Inlet Pressure: up to ANSI 125 and ANSI 250 cast-iron body rating
• Differential Pressure: up to 25 psi for bronze trim and 50 psi for stainless steel trim
• Weight: 64 lbs
