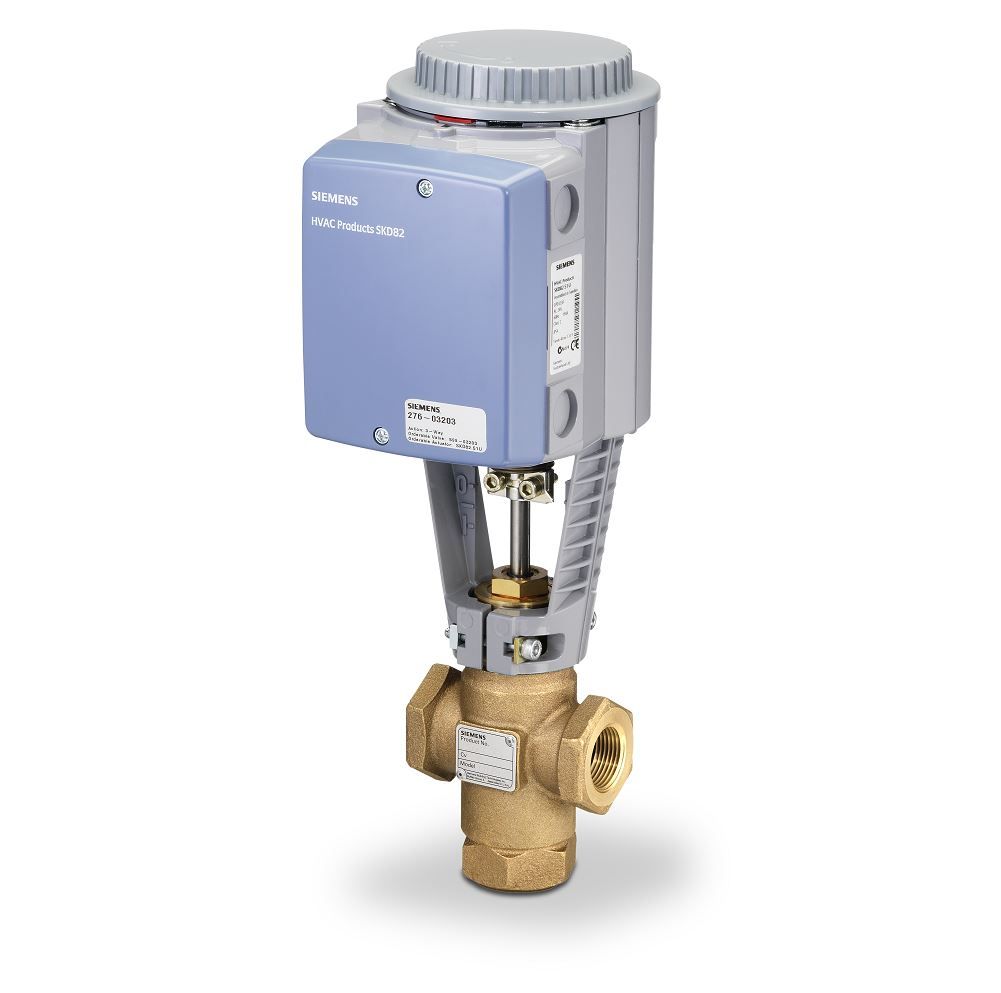

Siemens 276-03203 Globe Valve Assembly, 3 Way, 1 In.

Product Description

The Siemens 276-03203 Globe Valve Assembly is a three-way valve designed for efficient fluid control. This assembly features an NPT connection and a ten Cv flow coefficient. It includes a brass trim and a direct coupled actuator with a spring return. It operates on twenty-four volts AC and provides three-position floating control.

• Designed for fluid control in HVAC systems
• Compatible with water and glycol solutions
• Suitable for various operating conditions from five degrees Fahrenheit to one hundred thirty degrees Fahrenheit

Product Highlights

Ideal for use in commercial HVAC applications, the Siemens 276-03203 ensures reliable operation and functionality for controlling fluid flow in heating, ventilation, and air conditioning systems.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 276-03203

Technical Specifications

• Service: Water, Glycol Solutions Up To Fifty Percent
• Power Consumption: Eighteen VA
• Close-Off Pressure: Two hundred three psi
• Flow Characteristic: Equal Percentage (NC Port) And Linear Flow (NO Port)
• Operating Conditions: Five degrees Fahrenheit To One hundred thirty degrees Fahrenheit (Negative twenty-five degrees Celsius To Positive seventy degrees Celsius)
