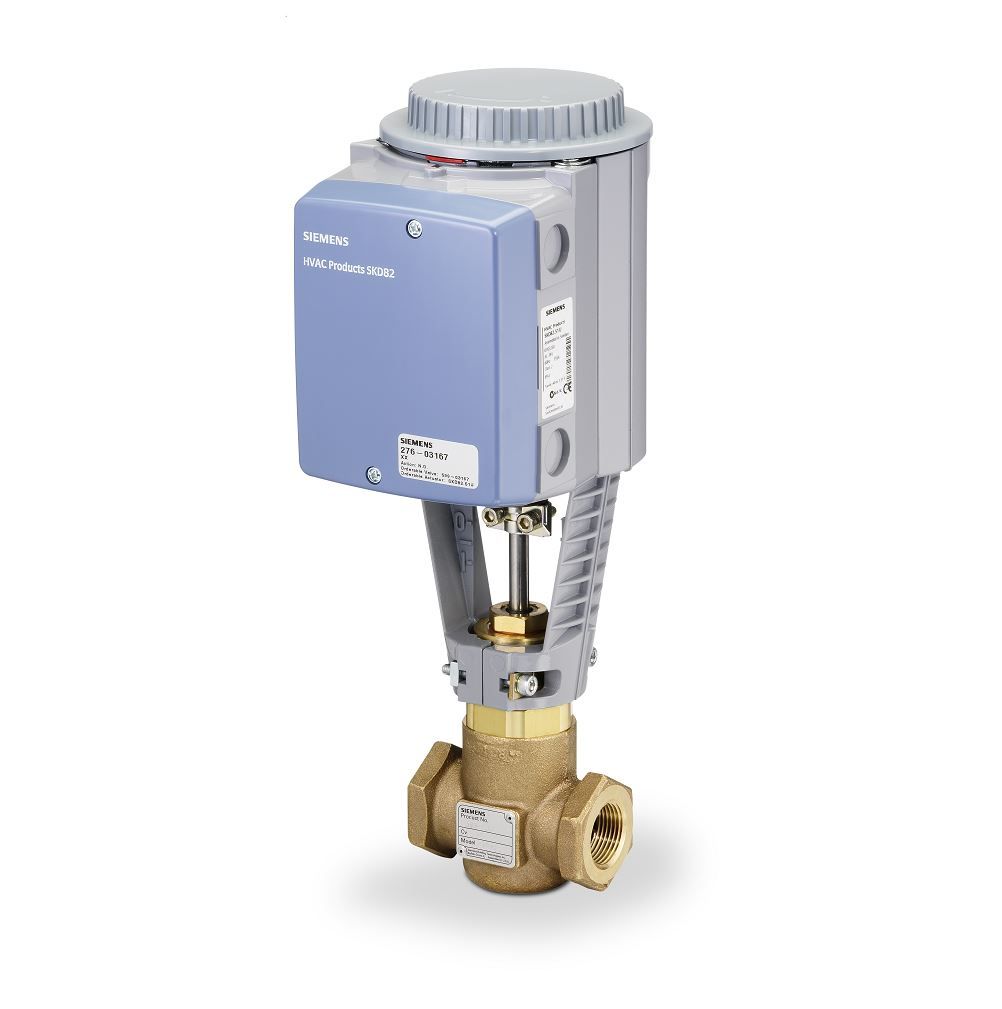

Siemens 276-03169 Globe Valve Assembly, 2 Way, 1-1/2 in. Replacement MPN

Product Description

The Siemens Globe Valve Assembly, MPN 276-03169, is designed for effective control in HVAC systems. This valve is a two-way configuration with a size of one and a half inches. It is suitable for various applications, including heating and cooling systems. The valve features an NPT connection and is built with brass trim and a direct coupled actuator.

• ANSI Class 250 compliant.
• Flow characteristic is Equal Percentage.
• Spring return actuator for reliable operation.

Product Highlights

This globe valve assembly is designed for efficient regulation of water, steam, and glycol solutions up to 50 percent. It operates at a power consumption of eighteen VA and can handle close-off pressure up to eighty psi.

Product Information

Standard Information

• Manufacturer: Siemens Building Technology
• Minimum Order Quantity: 1

Technical Specifications

• Service: Saturated Steam, Water, Glycol Solutions Up To 50%
• Close-Off Pressure: 80 psi
• Power Consumption: 18 VA
• Operating Conditions: 5 F To 130 F (-25 C To 150 C)
