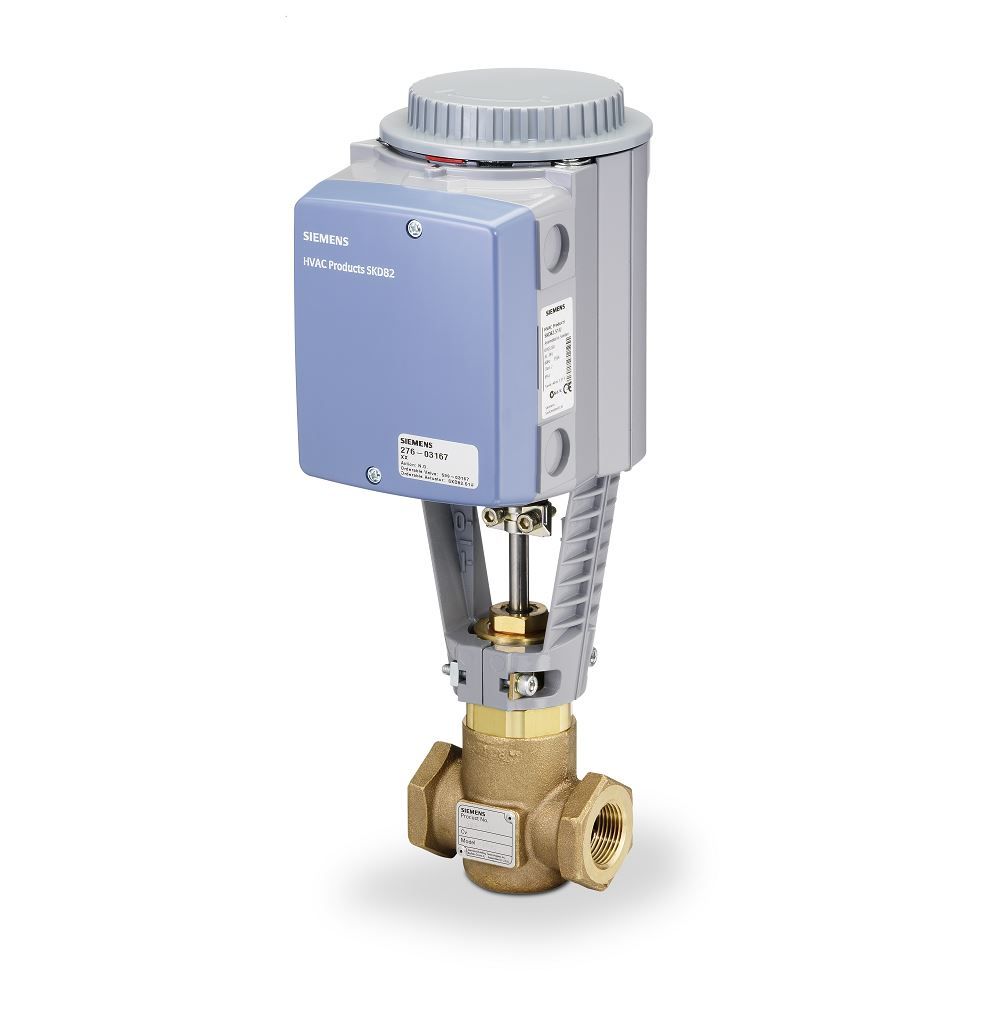

Siemens 276-03168 Globe Valve Assembly, 2 Way, 1-1/4 in.

Product Description

The Siemens 276-03168 Globe Valve Assembly is a two-way valve designed for HVAC applications. This valve measures one and one-quarter inches and is suitable for various control scenarios. The unit features a brass trim, an NPT connection, and a direct coupled actuator with spring return operation.

• ANSI Class 250 certified
• 24 VAC operation for easy integration
• Normally open with three-position floating control

Product Highlights

This globe valve is effective for regulating flow in HVAC systems. It is built to handle saturated steam, water, and glycol solutions, making it versatile in temperature control.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 276-03168

Technical Specifications

• Power Consumption: 18 VA
• Close-Off Pressure: 124 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 5 F to 130 F (-25 C to 150 C)
• Service: Saturated Steam, Water, Glycol Solutions Up To 50%
