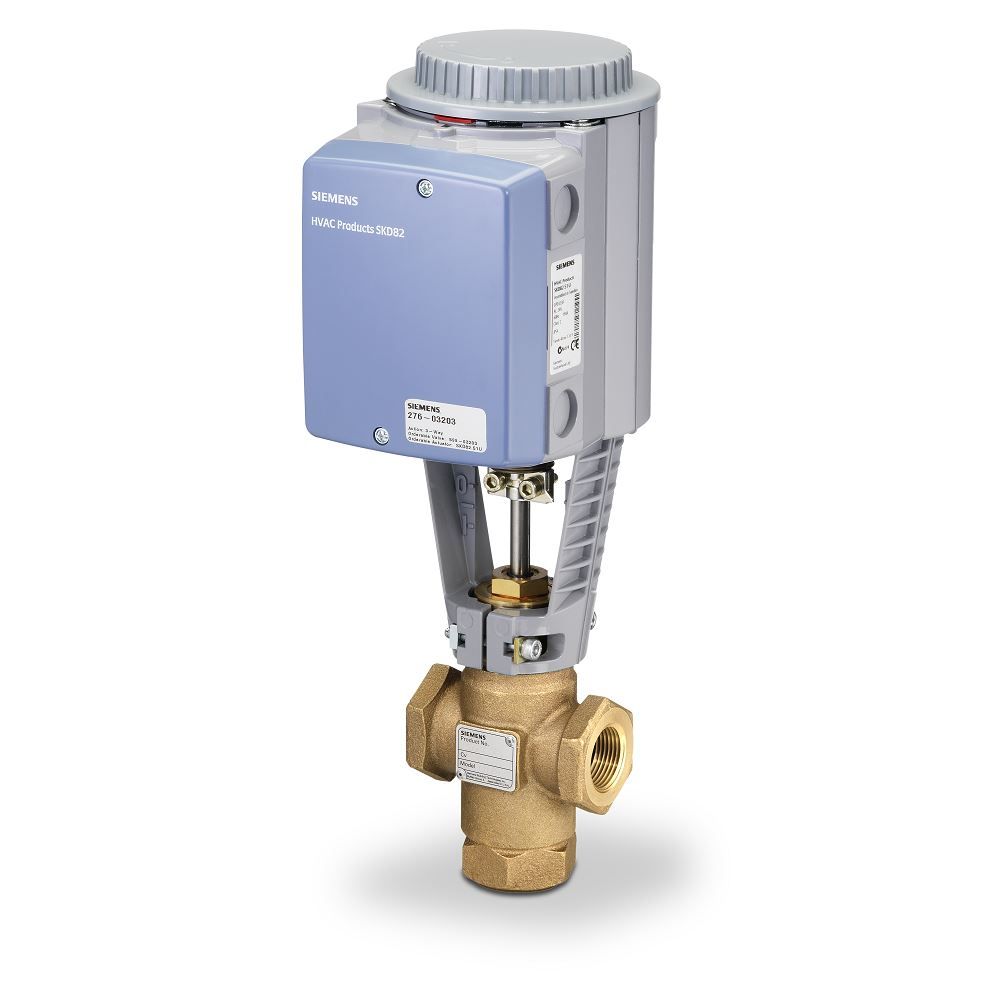

Siemens 276-03148 Globe Valve Assembly 3 Way 3/4 in.

Product Description

The Siemens 276-03148 globe valve assembly is a versatile three-way valve designed for HVAC applications. It features a three-quarter inch NPT connection and stainless-steel trim. This assembly includes a direct-coupled actuator with spring return, suitable for floating control. The valve operates at 24 VAC and has a flow coefficient of 6.3 Cv, making it efficient for managing water and glycol solutions.

• Compact design for easy installation
• Ideal for HVAC systems
• High-quality stainless-steel trim

Product Highlights

This valve assembly is essential for regulating and controlling fluid flow in HVAC applications. It is built to handle pressures up to 250 psi. With a reliable design, it ensures optimal performance in a variety of operating conditions from five degrees Fahrenheit to one hundred thirty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 276-03148

Technical Specifications

• Service: Water, Glycol Solutions Up To 50%
• Power Consumption: 18 VA
• Close-Off Pressure: 250 psi
• Flow Characteristic: Equal Percentage (NC Port) And Linear Flow (NO Port)
• Operating Conditions: 5 F To 130 F (-25 C To 150 C)
