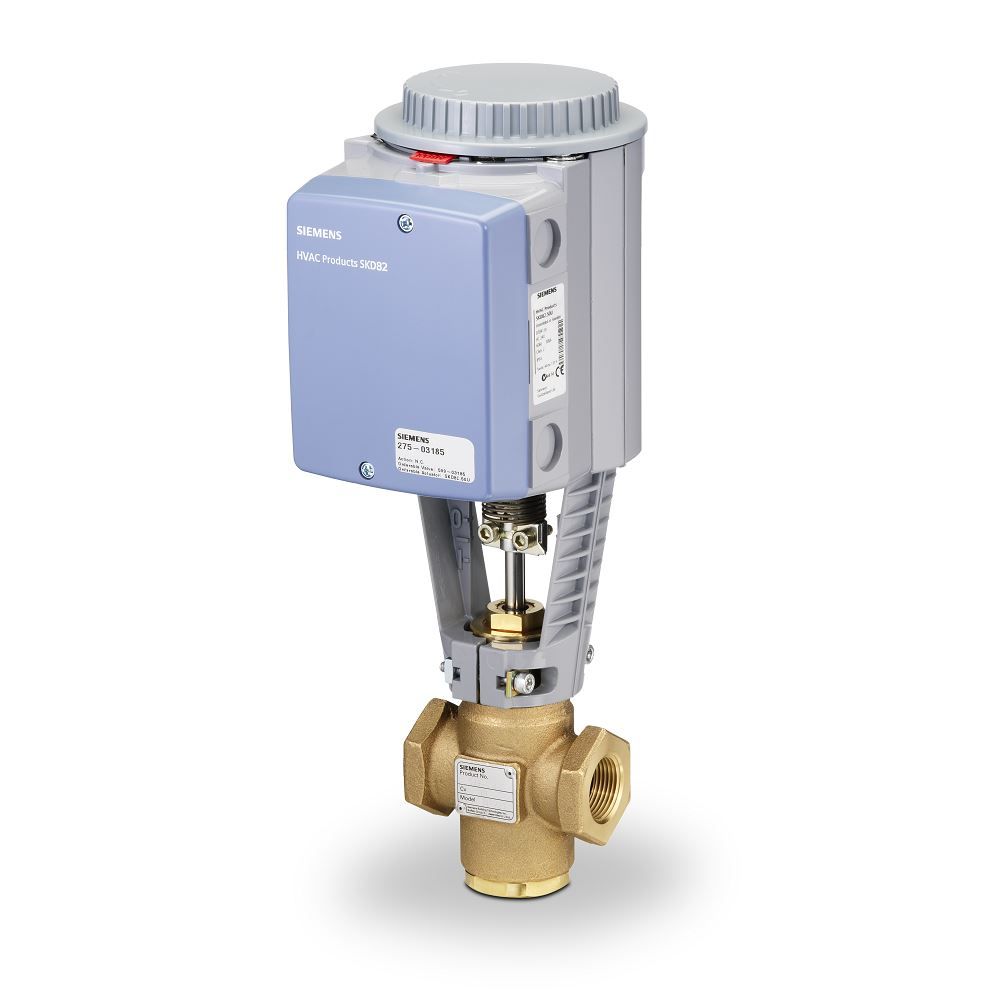

Siemens 276-03074 Globe Valve Assembly, 2 Way, 1/2 in. Power Replacement MPN

Product Description

The Siemens Globe Valve Assembly, part number 276-03074, is designed to manage fluid flow effectively. This valve assembly features NPT threading and has a flow coefficient of 2.5 Cv. It includes a stainless steel trim and direct coupling with the actuator. The actuator is spring return and operates on twenty-four VAC power. This valve is normally closed and supports three-position floating control.

• Fully compliant with ANSI Class 250 standards
• Suitable for saturated steam, water, and glycol solutions up to fifty percent
• Operates efficiently in temperatures ranging from five degrees Fahrenheit to one hundred thirty degrees Fahrenheit

Product Highlights

This globe valve assembly is ideal for HVAC control applications, ensuring reliable performance and precise flow regulation.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 276-03074

Technical Specifications

• Power Consumption: 18 VA
• Close-Off Pressure: 250 psi
• Flow Characteristic: Linear
• Operating Conditions: 5 F to 130 F (-25 C to 150 C)
• Service: Saturated Steam, Water, Glycol Solutions Up To 50%
