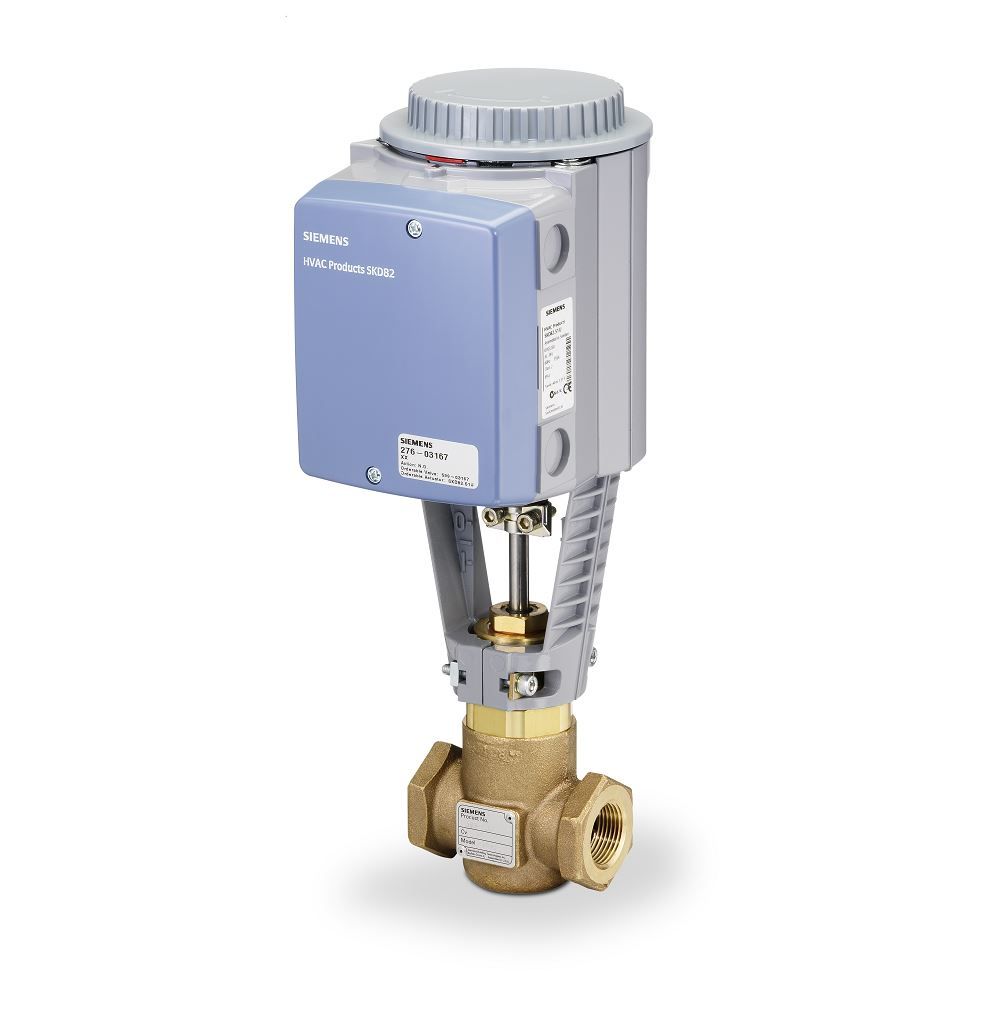

Siemens 276-03059 Globe Valve Assembly, 2 Way, 1 in. Replacement MPN

Product Description

The Siemens globe valve assembly with MPN 276-03059 is designed for efficient fluid control in heating, cooling, and process systems. It features a two-way design for controlling flow direction and is suited for various applications. This valve uses NPT connections and works with systems designed for saturated steam, water, and glycol solutions. The stainless steel trim enhances durability, making it suitable for rigorous environments.

• ANSI Class 250 pressure rating
• Linear flow characteristic for precise control
• Spring return actuator with normally open configuration

Product Highlights

This valve assembly operates on standard voltages of 24 VAC and is designed for floating control in three positions. It is a reliable choice for HVAC control components.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 276-03059

Technical Specifications

• Power Consumption: 18 VA
• Close-Off Pressure: 201 psi
• Flow Characteristic: Linear
• Operating Conditions: 5 F to 130 F (-25 C to 150 C)
• Service: Saturated steam, water, glycol solutions up to 50%
