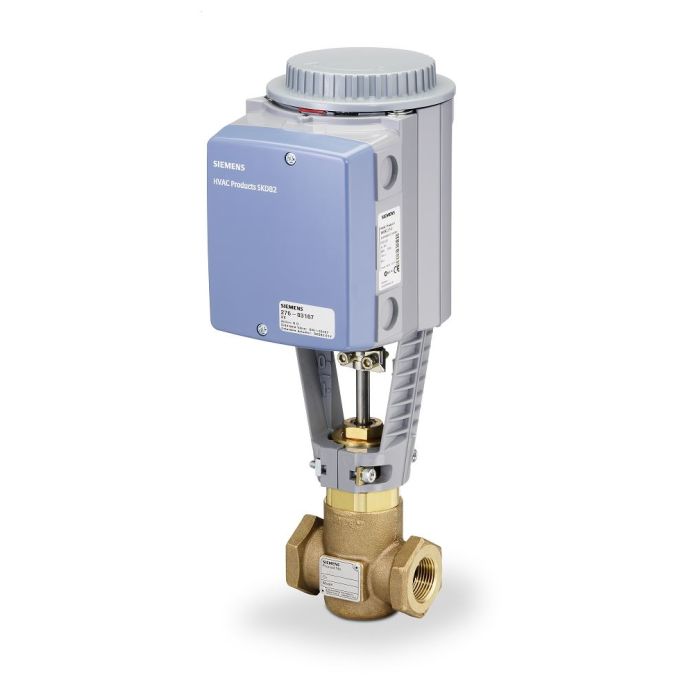

Siemens 275-03114 Globe Valve Assembly, 2 Way, 1-1/4 in.

Product Description

The Siemens 275-03114 is a globe valve assembly designed for efficient control of fluid flow. This 2-way valve features stainless steel trim and is equipped with a direct-coupled actuator. It operates on 24 VAC and is normally open, allowing for three-position floating control. This product is suitable for various applications including heating, cooling, and industrial systems.

• ANSI Class 250F x F connection
• Direct coupled actuator with non-spring return
• Compatible with water, steam, and 50% water-glycol solutions

Product Highlights

The globe valve design provides reliable performance in HVAC systems. It ensures precise control over the flow of fluids, making it ideal for applications where accurate regulation is necessary.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 275-03114

Technical Specifications

• Service: Water, Steam, 50% Water-Glycol Solutions
• Power Consumption: 13 VA
• Close-Off Pressure: 124 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 5 F to 130 F (-25 C to 150 C)
