Siemens 270-03185 Valve Assembly 2-Way NC 1-Inch 10CV Brass Trim

Product Description

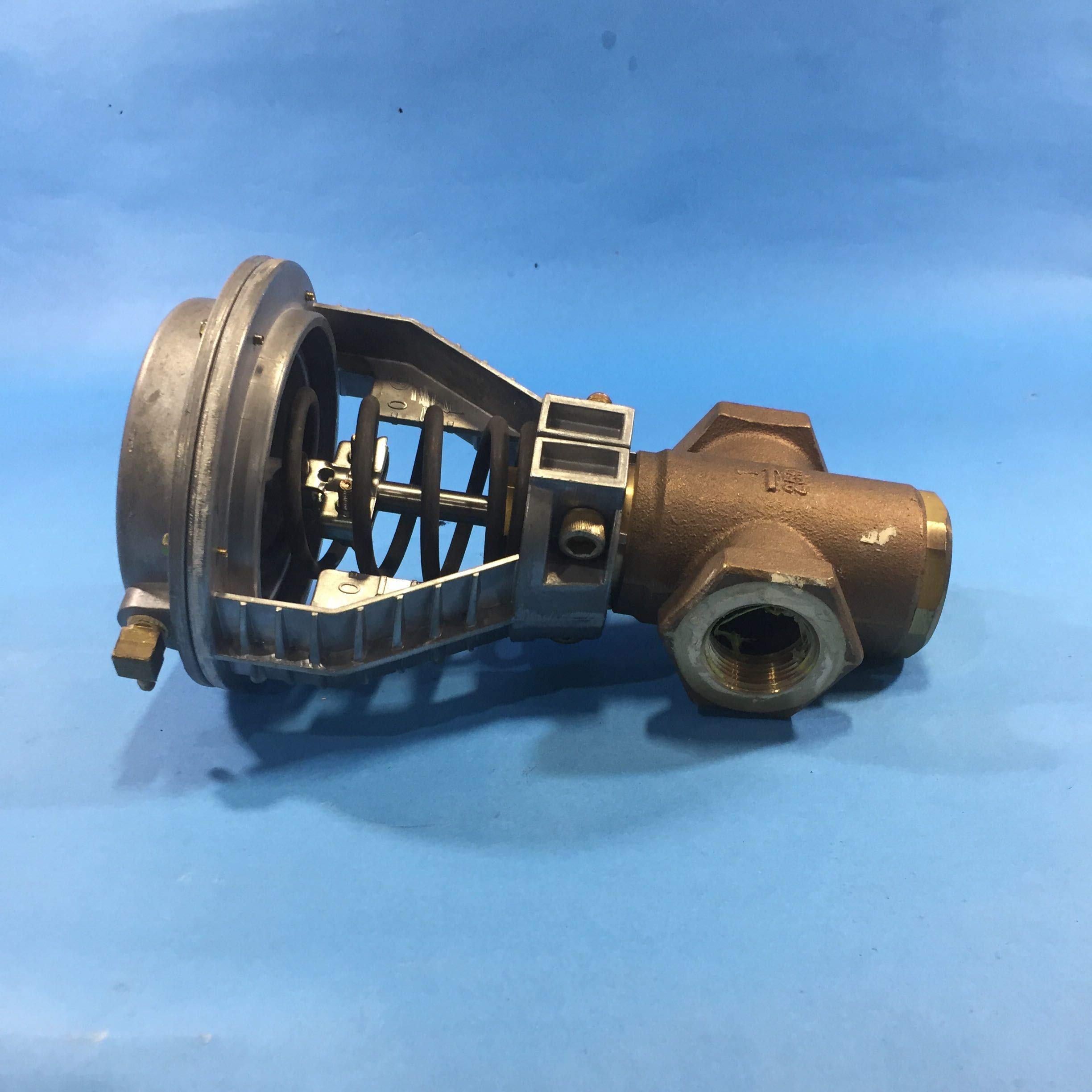

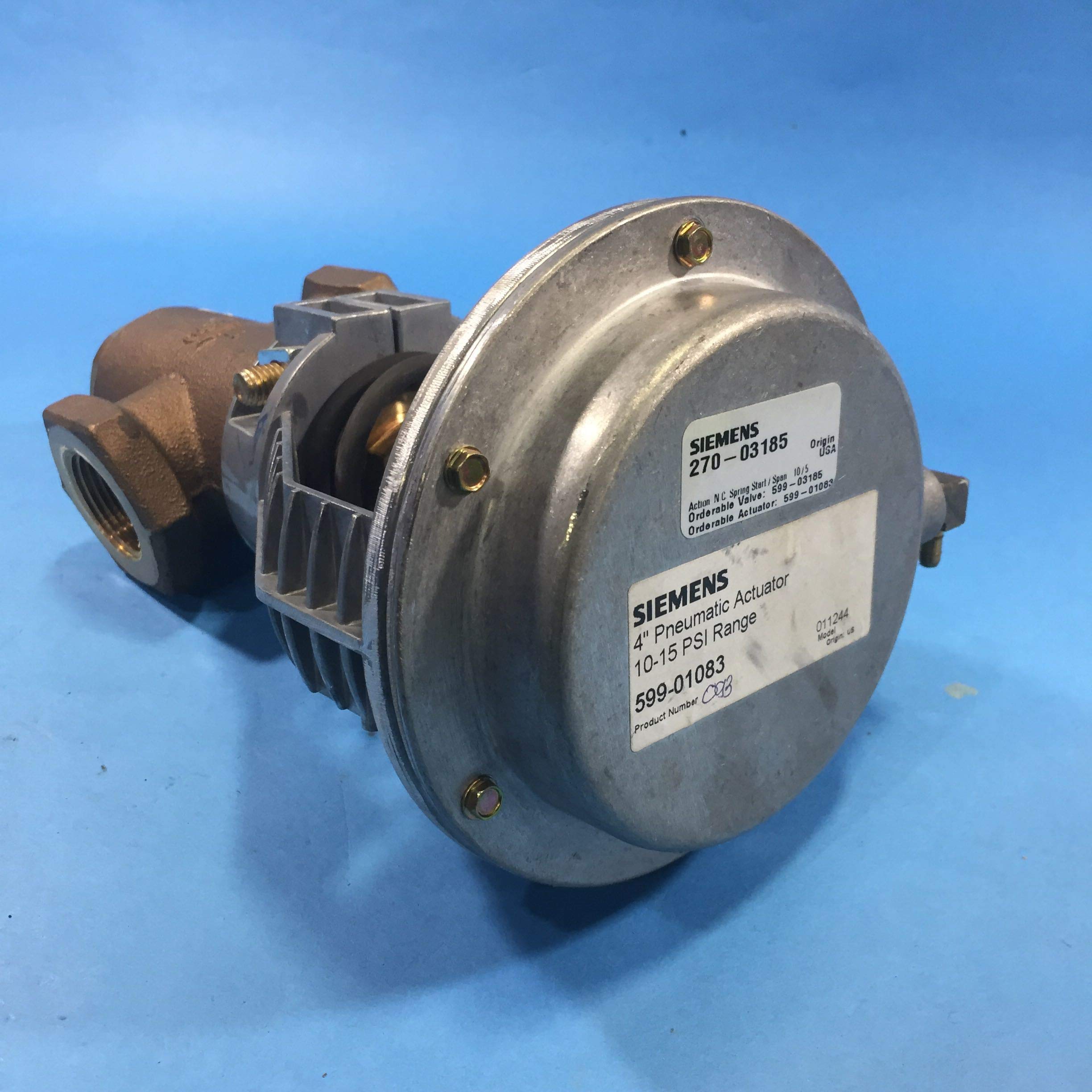

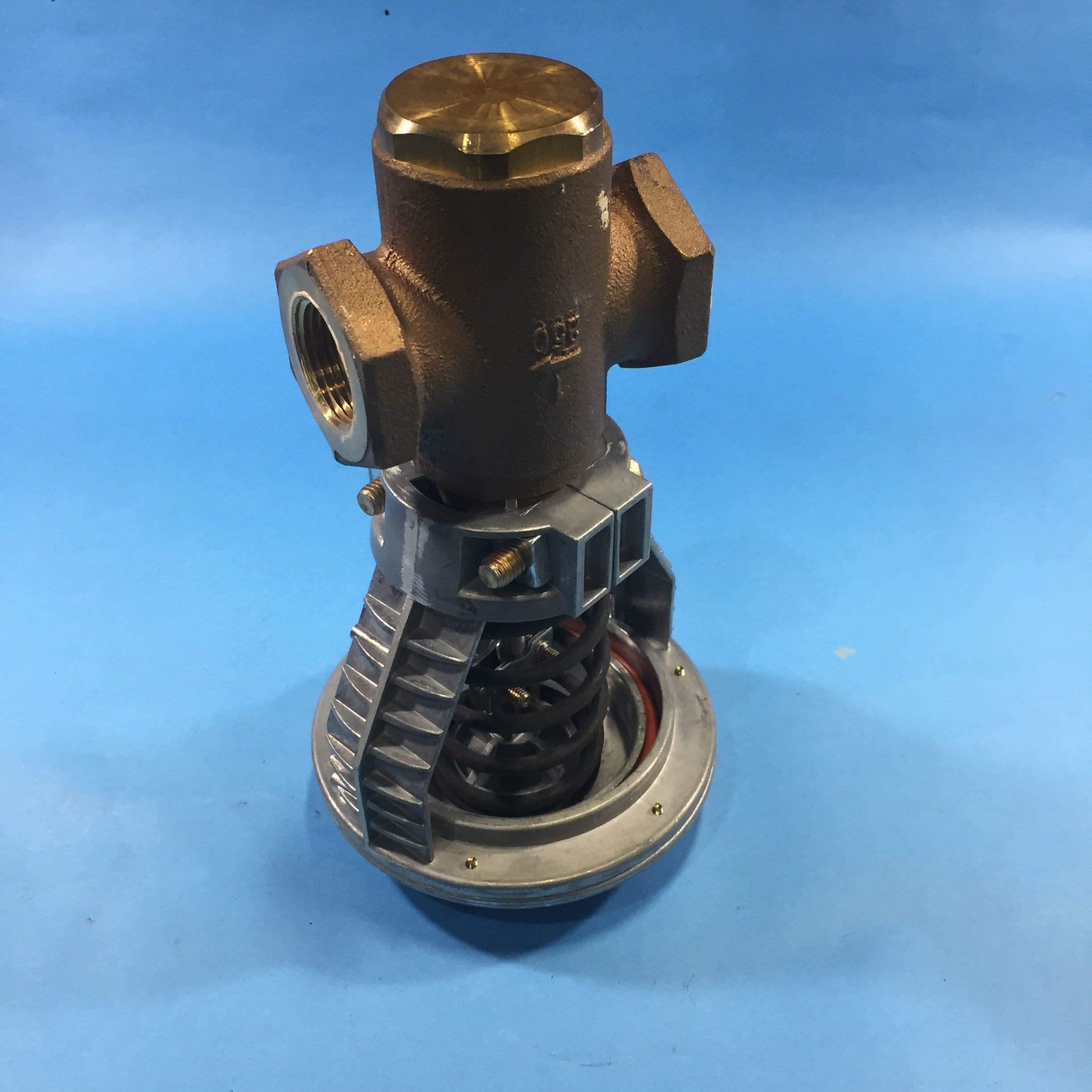

The Siemens 270-03185 Valve Assembly is a 2-way, normally closed valve designed for HVAC systems. It features brass trim and a 1-inch size, ensuring durability and reliability in various applications. This valve has a 10 CV rating and is equipped with a 4-inch pneumatic actuator operating at 10-15 psi.

• Valve pattern: 2-way
• Valve CV/GPM: 10
• Body rating: 250

Product Highlights

This Siemens valve is ideal for HVAC systems requiring efficient flow control. With its brass trim and robust design, it ensures reliable performance in demanding environments.

Product Information

Standard Information

• Manufacturer: Siemens
• Part Number: 270-03185
• Product Type: Valve Assembly
• Application: HVAC Systems

Technical Specifications

• Valve Pattern: 2-way
• Valve CV/GPM: 10
• Body Rating: 250
• Maximum Temperature: 250°F
• Valve Size: 1 inch
• Actuator Size: 4 inches
• Actuator Pressure: 10-15 psi
• Material: Brass Trim
