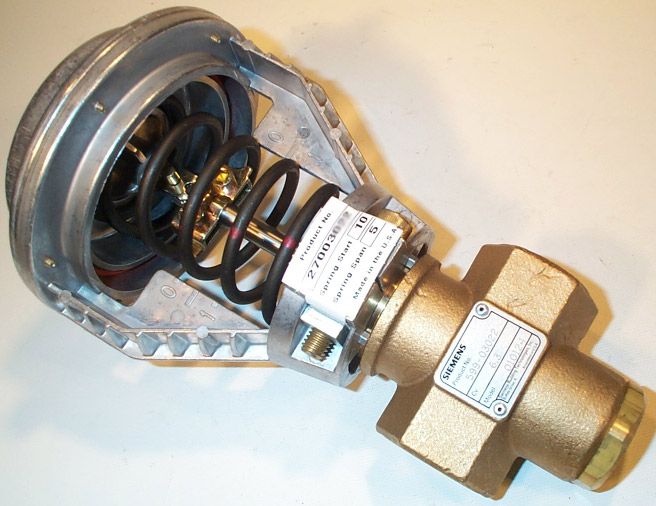

SIEMENS 270-03184 2-Way NC Brass Valve Actuator Assembly 3/4 Inch 6.3 Cv

Product Description

The Siemens 270-03184 is a robust 2-way normally closed brass valve actuator assembly, ideal for controlling fluid flow in HVAC systems. Manufactured by Siemens, a leading name in building technologies, this valve supports equal percentage flow characteristics, ideal for a wide range of industrial applications.

• Durable brass construction ensures extended service life
• Equipped with a 4-inch pneumatic actuator, operating between 10 and 15 psi
• Suitable for systems requiring precise flow control up to 6.3 Cv

Product Highlights

This valve showcases excellent resistance to wear and corrosion, making it a reliable choice for heavy-duty use. Its compact design allows for straightforward installation, ensuring efficiency and minimal maintenance.

Product Information

Standard Information

• Brand: Siemens
• Pressure Rating: 250 psi

Technical Specifications

• Valve Size: 3/4 inch
• Connection Type: Female x Female (FNPT x FNPT)
• Temperature Tolerance: Maximum 250 degrees Fahrenheit
• Body Material: Brass
• Flow Capacity (Cv): 6.3
• Actuator Type: Pneumatic, 4-inch travel
• Inlet Size: 3/4 inch
