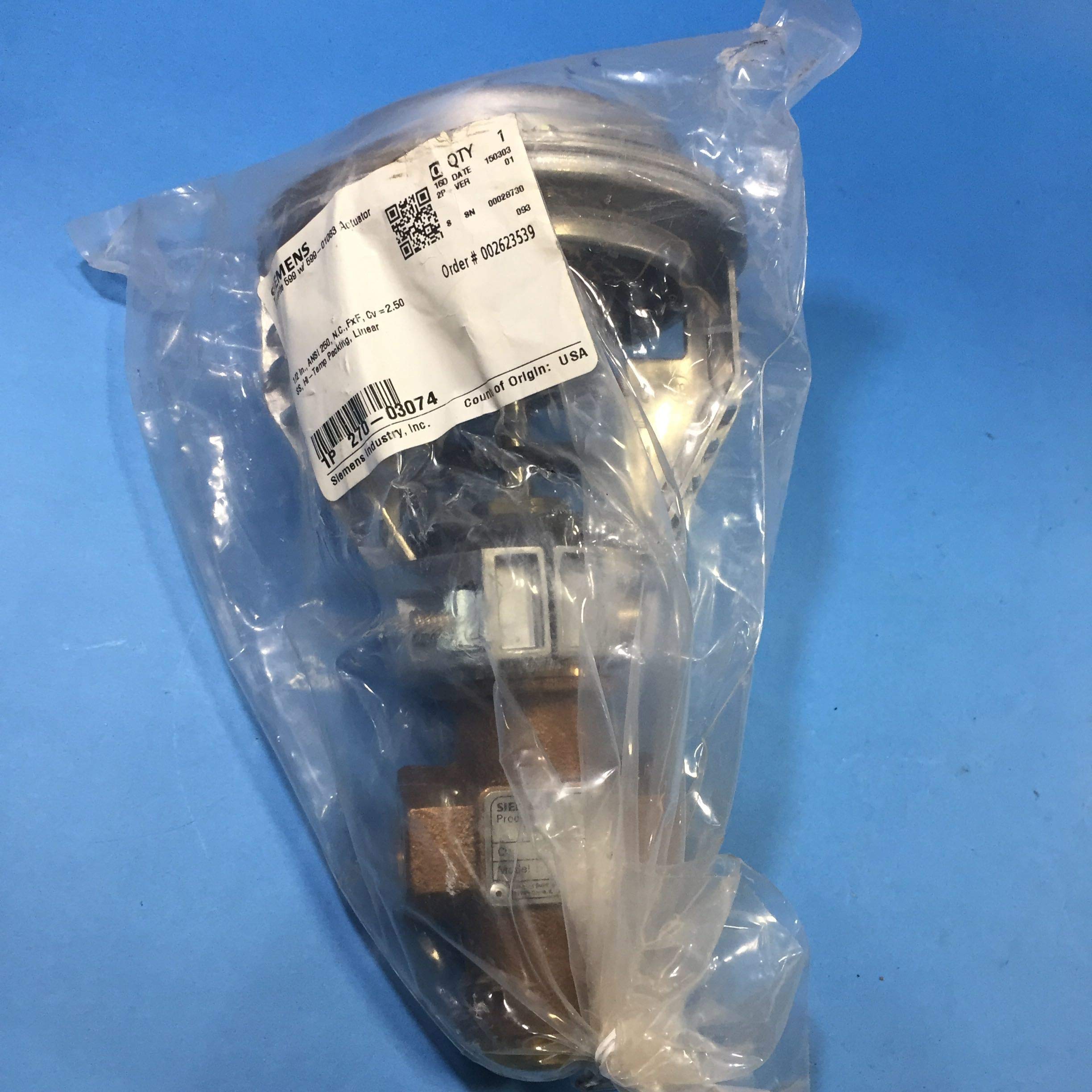

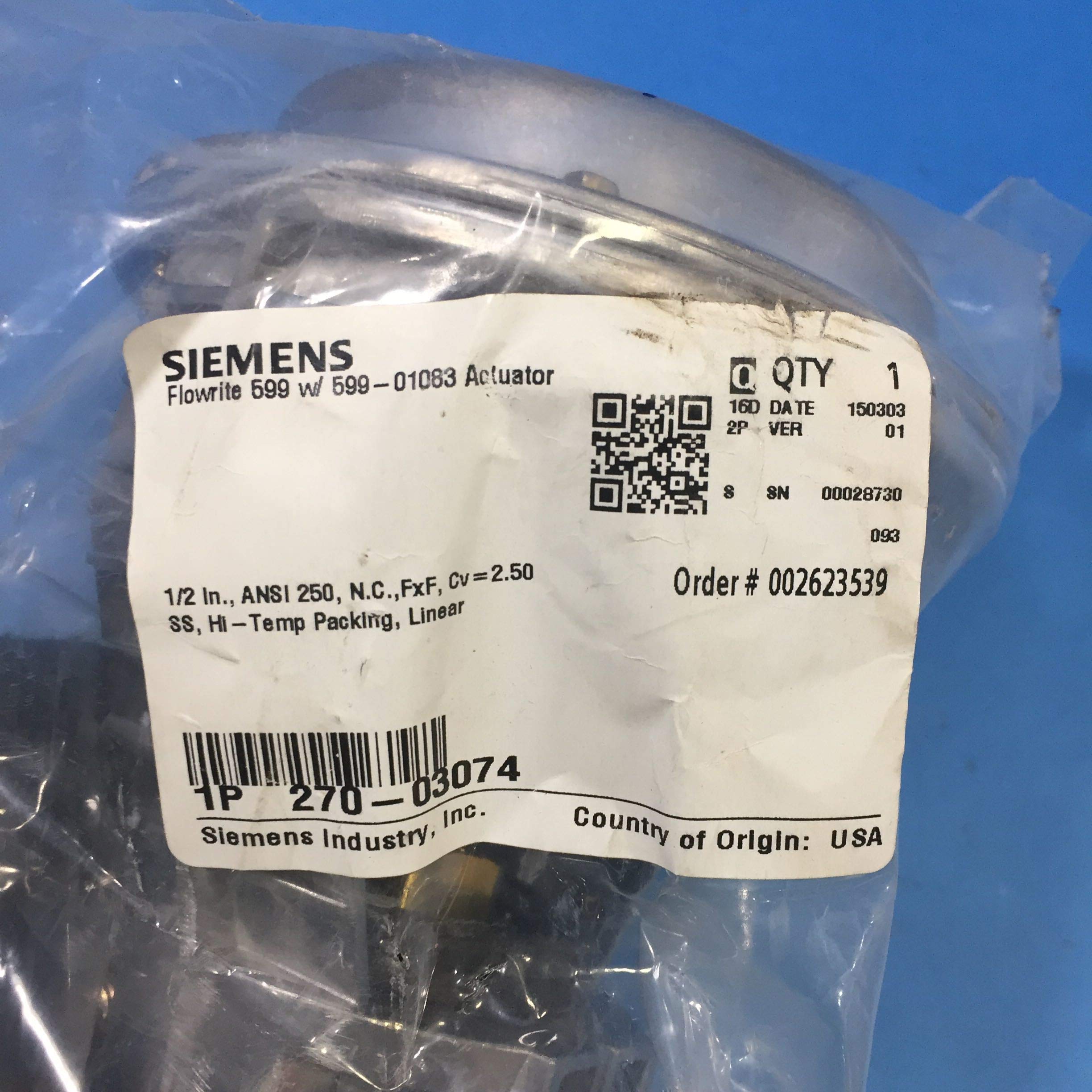

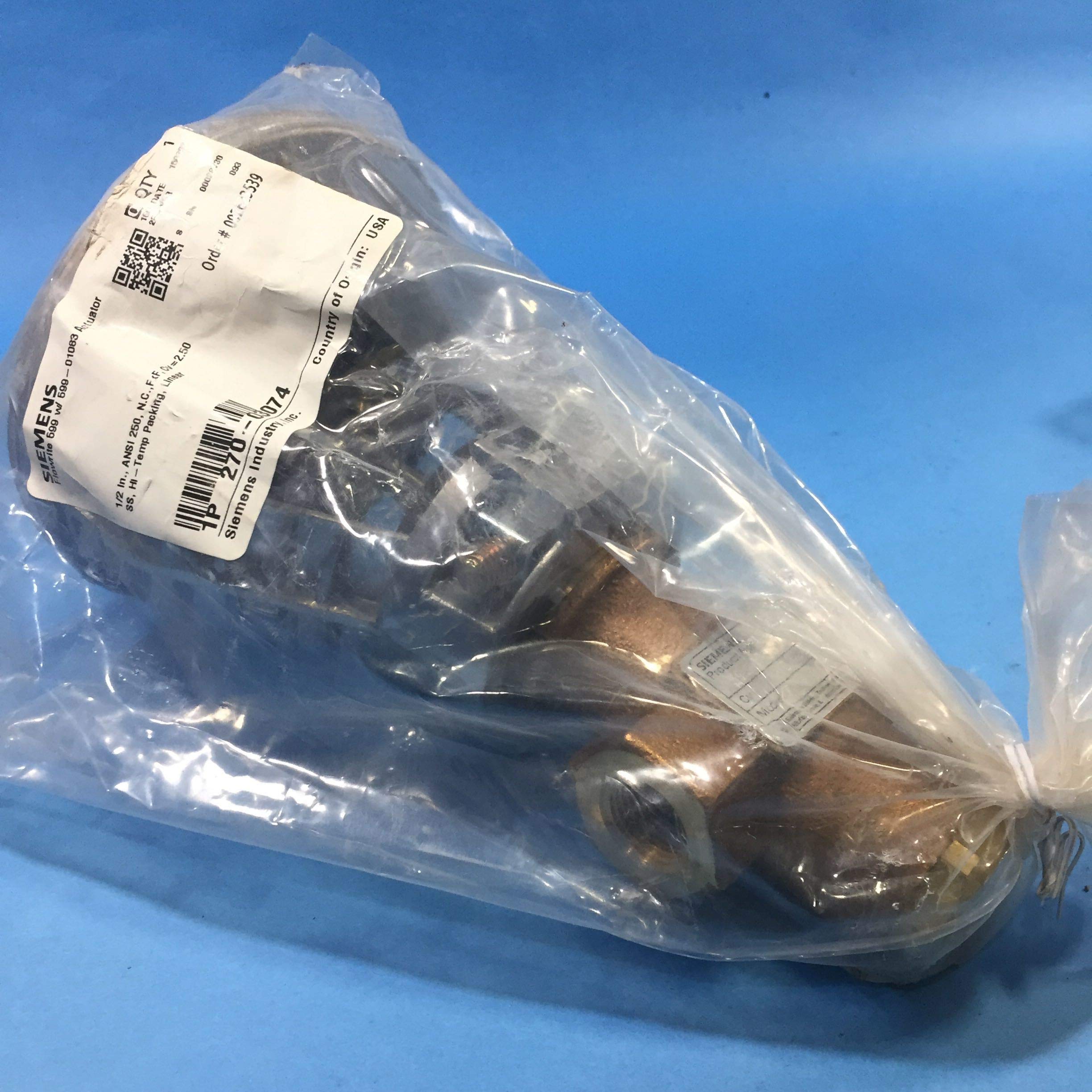

Siemens 270-03074 2-Way NC Stainless Steel Valve Assembly with Pneumatic Actuator 0.5 Inch

Product Description

The Siemens 270-03074 is a high-quality valve assembly, designed for efficient control in HVAC systems. This product includes a 2.5 CV, 0.5 Inch stainless steel trim valve and a 4 Inch pneumatic actuator. Engineered to operate effectively within a temperature range up to 337 degrees, it offers consistent performance under high-temperature conditions.

• Precision flow control with 2.5 CV rating
• High-temp packing for enhanced durability
• FxF connection ensuring reliable installation

Product Highlights

This valve assembly is especially suitable for applications requiring robust, accurate flow control. The compact, 0.5 Inch size coupled with the stainless steel construction makes it an ideal choice for demanding environments.

Product Information

Standard Information

• Valve pattern: 2-way
• Valve CV/GPM: 2.5
• Body rating: 250
• Maximum temperature capability: 337 degrees Fahrenheit

Technical Specifications

• Valve size: 0.5 Inch
• Connection type: Female by Female (FxF)
• Material: Stainless Steel
• Actuator size: 4 Inch pneumatic
• Operating pressure range: 10-15 psi
