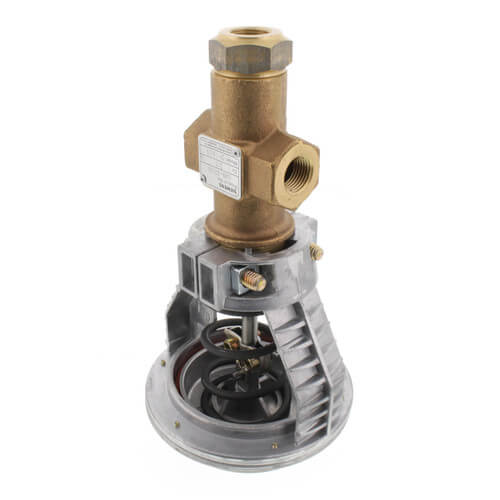

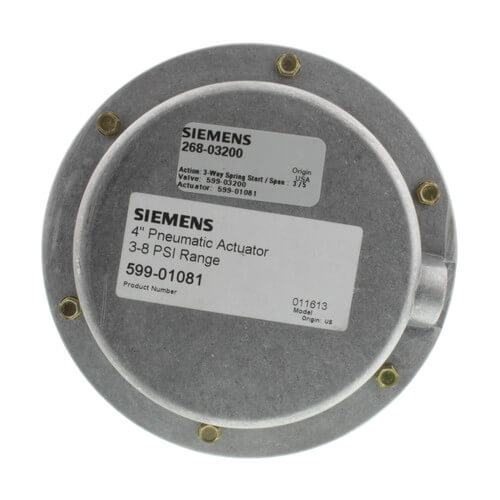

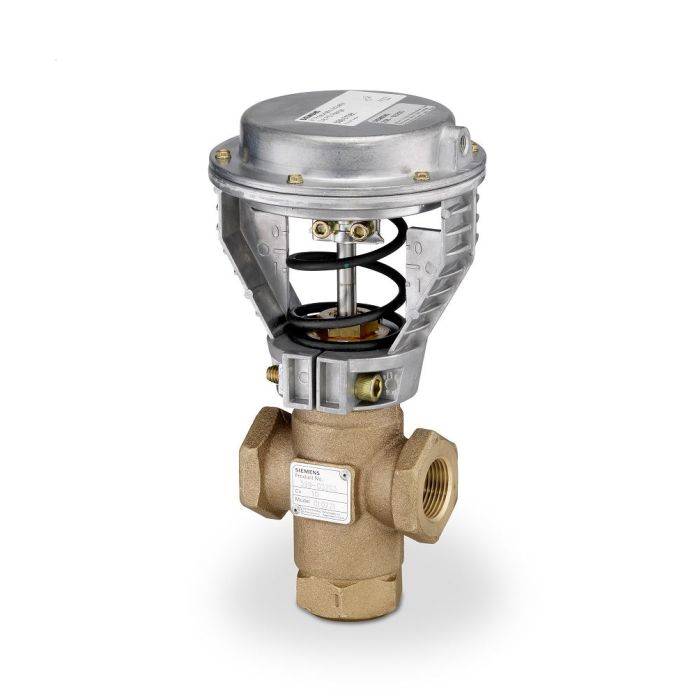

Siemens 268-03200 Globe Valve Assembly, 3 Way, 0.5 Cv (1/2 in.)

Product Description

The Siemens 268-03200 is a globe valve assembly designed for use in pneumatic systems. This valve is suitable for controlling fluid flow in various applications including HVAC systems.

• Flow capacity of 2.5 Cv
• Operation range of 3 to 8 psi
• 1/2 inch female NPT connections

Product Highlights

This valve provides precise control for hot and chilled water systems. It also handles water-glycol solutions and steam up to a temperature of 250 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Siemens Building Technology
• Part Number: 268-03200
• Minimum Order Quantity: 1

Technical Specifications

• Pressure Range: 3 to 8 psi
• Stroke: 3/4 inches
• Body Pattern: 3-Way
• Material: Brass
• Operating Conditions: 20°F to 250°F (-7°C to 120°C)
• Service: Saturated steam, water, glycol solutions up to 50%
• Weight: 5.77 pounds
• Dimensions: 12.7 inches (L) x 6 inches (W) x 6.05 inches (H)
