SIEMENS 268-03112 HVAC Valves FLOWRITE Series 0.75 in.

Product Description

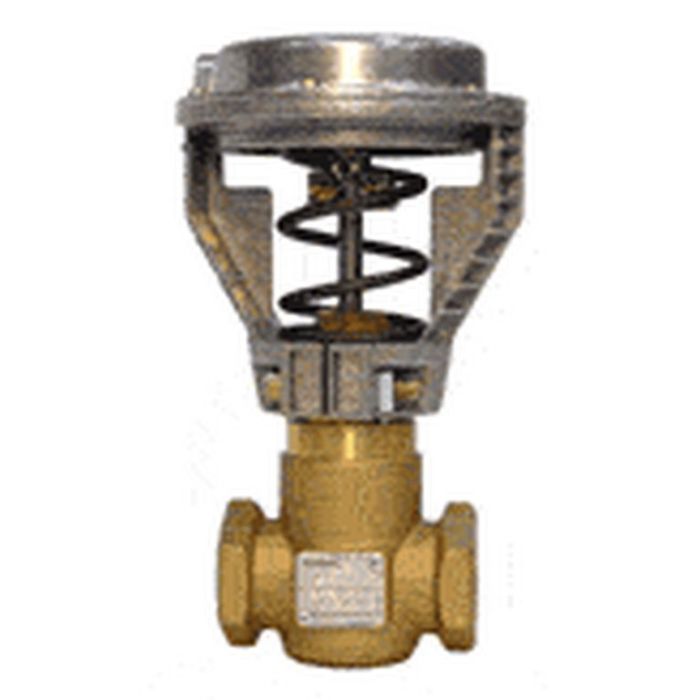

The SIEMENS 268-03112 is an HVAC valve from the FLOWRITE series. It is a two-way globe valve with a threaded connection. The pipe size is 0.75 inches, with a capacity of 6.3 Cv. It effectively handles saturated steam, water, and glycol solutions up to fifty percent concentration. The valve operates normally open and includes a spring return pneumatic actuator.

• Threaded connection for easy installation.
• Suitable for water, steam, and glycol applications.
• Stainless steel construction for durability.

Product Highlights

This HVAC valve suits various HVAC applications, featuring a two-way body pattern and equal percentage flow characteristics.

Product Information

Standard Information

• Brand: SIEMENS
• Product Series: FLOWRITE

Technical Specifications

• Manufacturer Part Number: 268-03112
• Capacity: 6.3 Cv
• Pipe Size: 0.75 inches
• Connection Type: Threaded
• Max Close-Off Pressure: 80 psi
• Body Pattern: Two-Way
• Valve Style: Globe
• Medium Temperature Range: 20-250 °F
• Flow Characteristic: Equal Percentage
• Fail-Safe Mode: Spring Normally Open
• Service: Saturated Steam, Water, Glycol Solutions Up To 50%
• Operating Conditions: 20°F To 250°F (−7°C To 120°C)
• Material: Stainless Steel
