Product Description

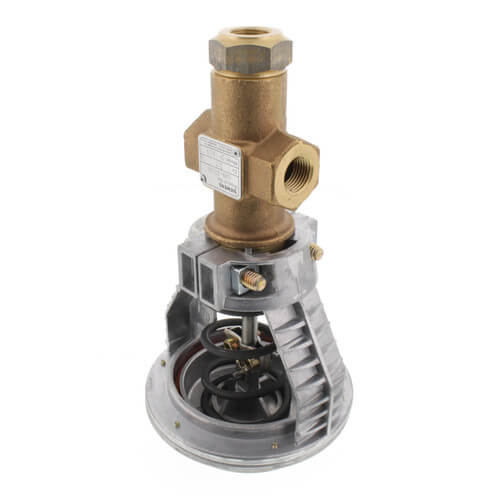

The Siemens 268-03060 is a high performance stainless steel globe valve combined with an actuator, designed for heat control systems requiring reliable flow regulation. This model is essential for applications involving hot or chilled water and steam.
- Equipped with ANSI Leakage Class IV for minimal Cv leakage.
- Incorporates a universal bonnet for easy installation.
- Features large diaphragm area to enhance control accuracy.
Product Highlights
This combination unit is highlighted by its cartridge type packing and linear flow characteristics, making it ideal for systems needing precise temperature management.
Product Information
Standard Information
-
Body Pattern: 2-Way
-
Material: Stainless Steel
Technical Specifications
-
Connection Size: 1-1/4 inch
-
Connection Type: FNPT x FNPT
-
Pressure Range: 3 to 8 psi
-
Flow Capacity (Cv): 16
