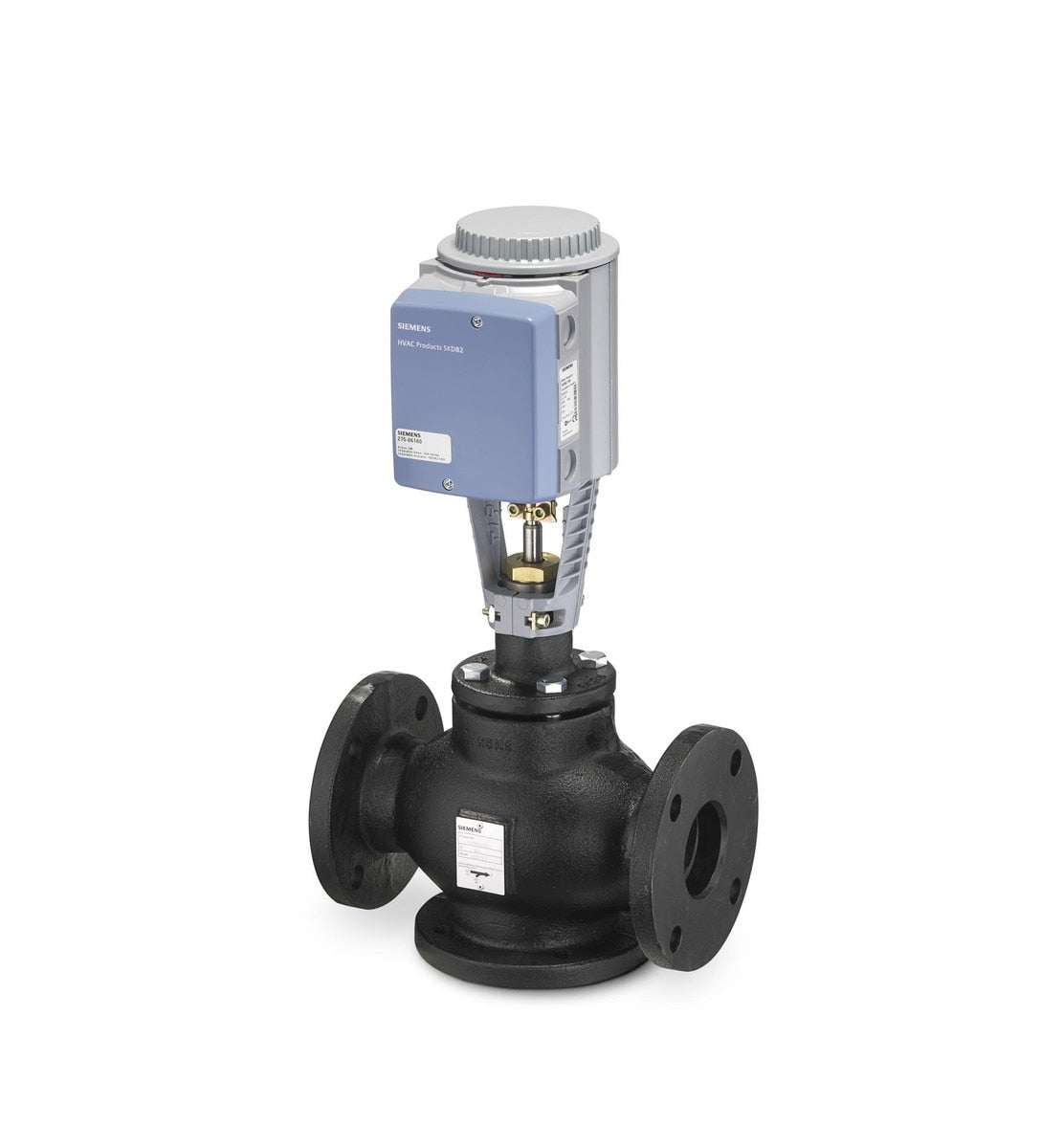

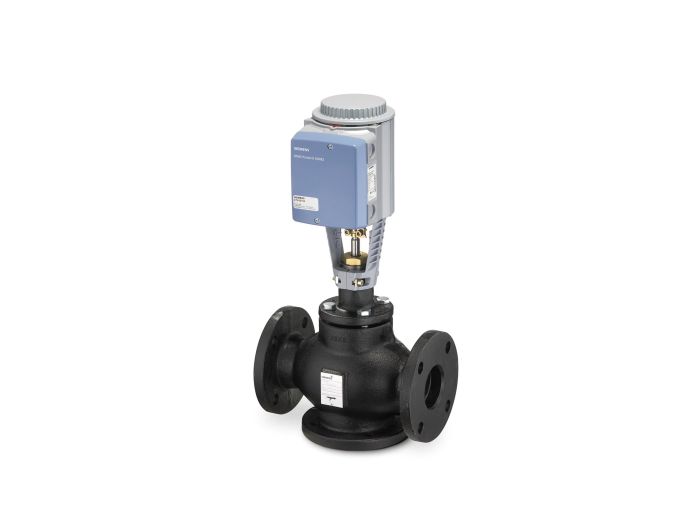

Siemens 267-06170 Globe Valve Assembly 24 VAC (2.5 in) 599-06170

Product Description

Siemens 267-06170 is a 3-way globe valve assembly with a 2.5-inch port and 63 Cv flow capacity for modulating control applications. The flanged valve features bronze trim, ANSI Class 250 rating, and a direct-coupled non-spring return actuator driven at 24 VAC (17 VA) with 250 in-lb torque. It accepts proportional control signals (0-10 VDC or 4-20 mA) and is suitable for water and glycol solutions to 50%. NEMA 1 enclosure.

• 3-way flanged globe valve, 2.5 in size, 63 Cv, ANSI Class 250
• Direct-coupled non-spring return actuator, 24 VAC, 17 VA, 250 in-lb torque
• Proportional control and feedback: 0-10 VDC or 4-20 mA; electrical conduit opening 1/2 in NPSM

Product Highlights

3-way 2.5 in globe valve, 63 Cv, bronze trim, 24 VAC modulating actuator, ANSI 250, NEMA 1

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 267-06170
• Country of Origin: US

Technical Specifications

• Brand: Siemens
• MPN: 267-06170
• Product Type: 3-way globe valve assembly
• Valve Size: 2.5 in (2-1/2 in)
• Connection Type: Flanged
• Flow Pattern: Mixing / 3-way
• Flow Characteristic: Linear
• Cv: 63
• Trim Material: Bronze
• Body Rating: ANSI Class 250
• Actuator Type: Direct-coupled non-spring return electric actuator
• Actuator Model: SKD60U
• Actuator Torque: 250 in-lb
• Fail-Safe: Non-spring return (fail-in-place)
• Nominal Voltage: 24 VAC
• Power Consumption: 17 VA
• Control Signal: 0-10 VDC or 4-20 mA
• Feedback: 0-10 VDC or 4-20 mA
• Electrical Connections: 1/2 in NPSM conduit opening
• Operating Temperature: 5 F to 130 F (-15 C to 55 C)
• Close-off Pressure: 34 PSI
• Run Time: 30 second
• NEMA Rating: NEMA 1
• Service / Media: Water and glycol solutions to 50%
• Assembly Reference: 599-06170
