Product Description

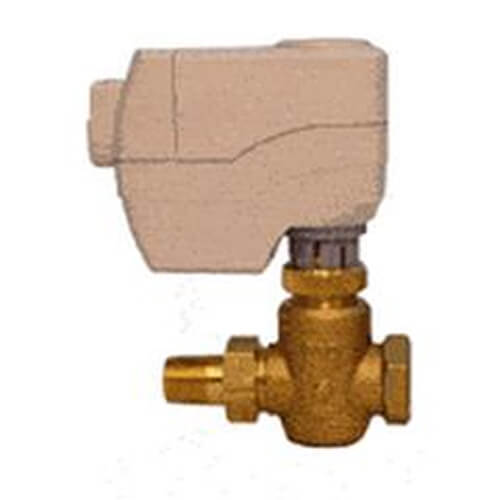

Introducing the Siemens 262-02056, a robust Powermite MT Series 2-Way Mixing Normally Open Stainless Steel Valve Actuator Assembly, providing reliable performance in HVAC applications. Designed for precision and durability, this model features a 24Vac connection and is ideal for hot or chilled water control, water-glycol solutions up to 50%, and steam up to 15 psi. With its direct-coupled universal bonnet and stainless steel trim, it meets ANSI Leakage Class IV standards.
- Suitable for normally open or normally closed control settings.
- Capable of handling a close off pressure of 15 psi with a flow capacity of 2.5 Cv.
- Features a modulating actuator with spring return functionality.
Product Highlights
The unit is equipped with a high-force actuator delivering a minimum of 67 lbs of force, ensuring effective performance in various industrial settings. The assembly is easy to install, coming with both NPT and Union male connections.
Product Information
Standard Information
-
Brand: Siemens
-
MPN: 262-02056
Technical Specifications
-
Valve Type: 2-Way
-
Connection: NPT x Union Male
-
Control Signal: 0-10V
-
Material: Stainless Steel
-
Position: Normally Open
-
Voltage: 24Vac
-
Size: 1/2 inch
-
Mounting: NEMA 1
