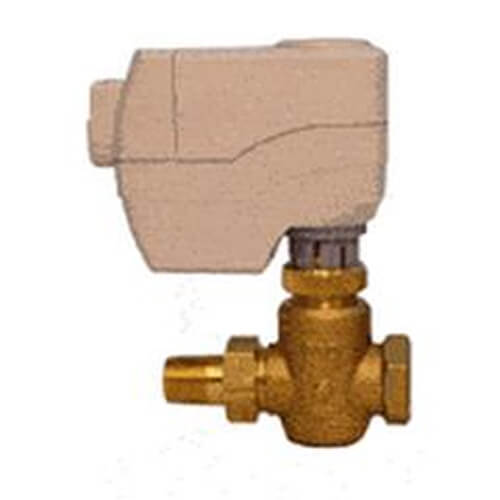

Siemens 262-02042 Powermite MT Series 2-Way Mixing N.O. Valve Actuator

Product Description

The Siemens Powermite MT Series 2-Way Mixing N.O. Valve Actuator, model 262-02042, is an essential valve actuator designed for various HVAC applications. This product from Siemens, a leading brand in automation and control technologies, offers robust performance for controlling water, water-glycol solutions, and steam. The actuator is compatible with both pneumatic and electronic actuators and functions with a 5.5-mm stroke.

• ANSI Leakage Class IV ensures minimal leakage.
• Constructed with brass or stainless steel trim for durability.
• Supports control signals from zero to ten Volts.

Product Highlights

Designed for seamless integration with existing systems, the Siemens 262-02042 features direct-coupled universal bonnet and female NPT end connections. It is ideal for applications requiring normally open or normally closed settings.

Product Information

Standard Information

• Mounting: NEMA 1 certified.
• Connection Type: NPT x Union Male

Technical Specifications

• Voltage: 24Vac
• Valve Type: 2-Way
• Trim: Brass
• Position: Normally Open
• Cv (Flow Capacity): 4.0
• Control Signal: 0-10V
• Actuator Model: SSC61.5U
• Close-Off Pressure: 15 psi
• Spring Return: Yes
• Size: 1/2 inch
