Product Description

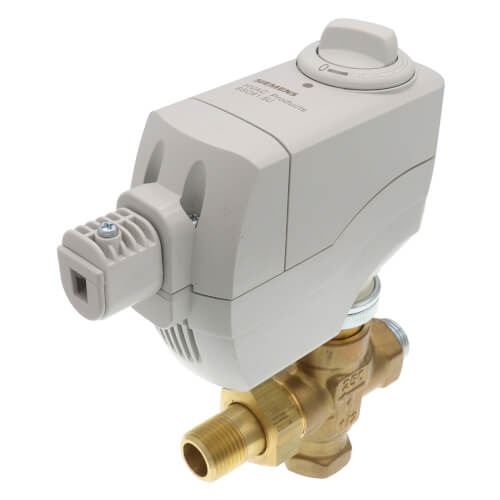

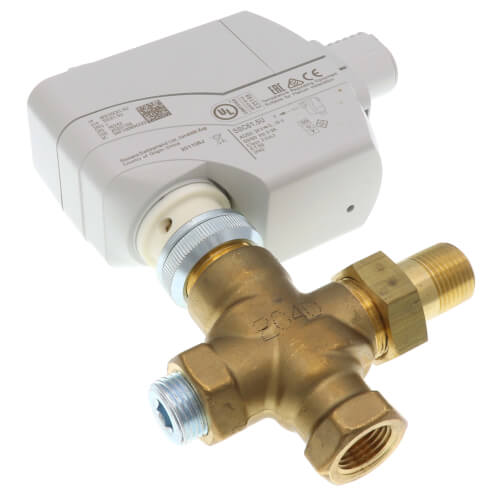

The Siemens 262-02040 is a 1/2 inch angle NPT x union male Powermite MT series 2-way mixing normally open valve actuator assembly operating at 24Vac with a flow coefficient of 2.5 Cv. Designed for HVAC professionals, this durable valve ensures efficient control of hot or chilled water and water-glycol solutions up to 50% concentration as well as low-pressure steam applications.
- Direct-coupled with universal bonnet and ANSI Leakage Class IV
- Brass trim design ensuring durability and reliability
- Spring return mechanism with a close-off pressure of 15 psi
Product Highlights
This actuator assembly is compatible with electronic and pneumatic actuators, making it versatile for various HVAC systems.
Product Information
Standard Information
-
Brand: Siemens
-
MPN: 262-02040
Technical Specifications
-
Voltage: 24Vac
-
Valve Type: 2-Way
-
Trim: Brass
-
Position: Normally Open
-
Cv: 2.5
-
Control Signal: 0-10V
-
Connection: Angle NPT x Union Male
-
Actuator: SSC61.5U
-
Mounting: NEMA 1
-
Close-Off Pressure: 15 psi
-
Spring Return: Yes
-
Valve Size: 1/2 inch
