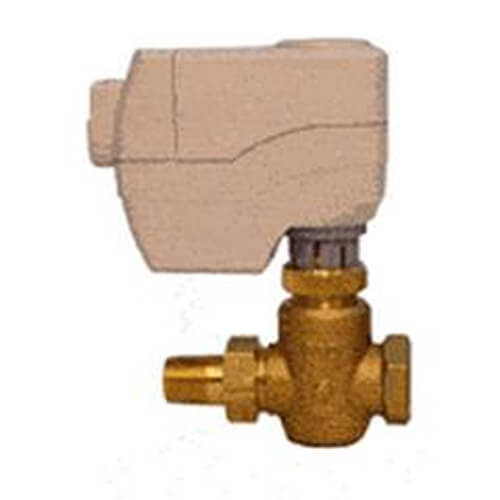

Siemens 262-02039 1/2 NPT x Union Male Powermite MT Series 2-Way Mixing N.O. Valve Actuator Assembly 24Vac 2.5 Cv

Product Description

The Siemens 262-02039 1/2 NPT x Union Male Powermite MT Series 2-Way Mixing N.O. Valve Actuator Assembly is designed for HVAC systems. This valve actuator is part of the Powermite 599 Series ANSI Class 250 MT Series. It works with both pneumatic and electronic actuators that have a 7/32-inch stroke. The actuator is suitable for normally open or normally closed control applications.

• Works with pneumatic and electronic actuators
• Valve type: 2-Way
• Flow capacity (Cv): 2.5

Product Highlights

This valve actuator is ideal for controlling hot or chilled water, water-glycol solutions up to 50%, and steam up to 15 psi. It is equipped with direct-coupled universal bonnet and Female NPT end connections with brass trim. It delivers a minimum force of 67 lbs.

Product Information

Standard Information

• Manufacturer: Siemens Building Technology
• Brand: Siemens
• MPN: 262-02039

Technical Specifications

• Voltage: 24Vac
• Valve Type: 2-Way
• Trim: Brass
• Position: Normally Open
• Cv: 2.5
• Control Signal: 0-10V
• Connection: NPT x Union Male
• Actuator: SSC61.5U
• Mounting: NEMA 1
• Close-Off Pressure: 15 psi
• Spring Return: Yes
• Valve Size: 1/2 inch
