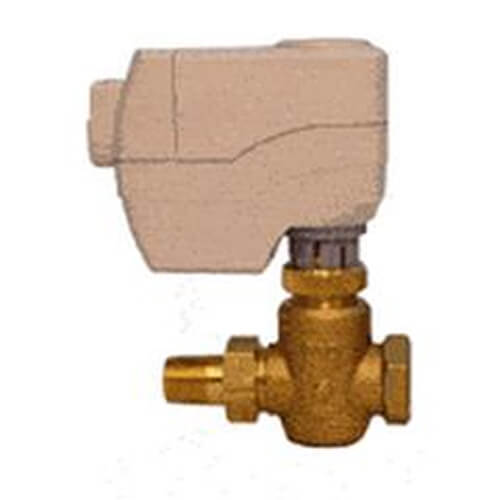

SIEMENS 262-02035 1/2 Inch NPT x Union Male Powermite MT Series 2-Way Mixing N.O. Valve Actuator Assembly 24Vac 1.0 Cv

Product Description

The Siemens Powermite 262-02035 is a high-quality 2-way mixing normally open valve actuator assembly, featuring 24 Vac operation with a flow coefficient (Cv) of 1.0. This product is designed for use in control systems handling hot or chilled water and water-glycol solutions, contributing to efficient energy management and system performance.

• Direct-coupled universal bonnet for reliable operation.
• Sturdy brass trim with NPT x Union male connection ensures durability and ease of installation.
• ANSI Class IV leakage rating promises superior performance and minimal fluid loss.

Product Highlights

Optimized for use with electronic or pneumatic actuators, this 2-way valve supports versatile applications across both commercial and residential HVAC systems. Its functionality is enhanced by a spring return feature and close-off pressure of 20 psi, ensuring robust and responsive performance.

Product Information

Standard Information

• Brand: Siemens
• Model: 262-02035

Technical Specifications

• Valve Size: 1/2 inch
• Type: 2-Way
• Voltage: 24Vac
• Control Signal: 0-10V
• Connection Type: NPT x Union Male
• Material: Brass
• Position: Normally Open
• Safety Compliance: NEMA 1
