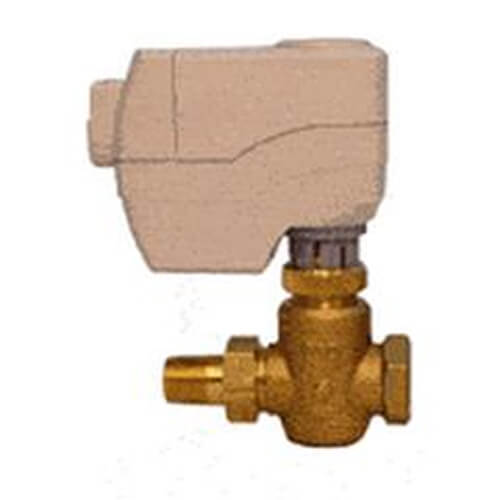

Siemens 262-02033 Powermite MT Series 2-Way Mixing N.O. Valve Actuator Assembly 24Vac

Product Description

Introducing the Siemens 262-02033 Powermite MT Series 2-Way Mixing N.O. Valve Actuator Assembly, designed for demanding HVAC applications. This device offers precision control of hot or chilled water, water-glycol solutions up to 50%, and low-pressure steam applications.

• Direct-coupled universal bonnet for smooth operation and durability.
• Fitted with female NPT end connections in brass or stainless steel to suit varied industrial needs.
• Features ANSI Leakage Class IV for reliable performance with minimal fluid loss.

Product Highlights

Featuring a 0-10V control signal and a straightforward 24Vac operation, this valve actuator is ideal for systems requiring reliable, modulating control. The inclusion of a spring return mechanism ensures a fail-safe operation.

Technical Specifications

• Valve Type: 2-Way
• Material: Brass
• Position: Normally Open
• Connection: NPT x Union Male
• Actuator: SSC61.5U
• Mounting: NEMA 1
• Close-Off Pressure: 20 psi
• Flow Capacity (Cv): 0.63
