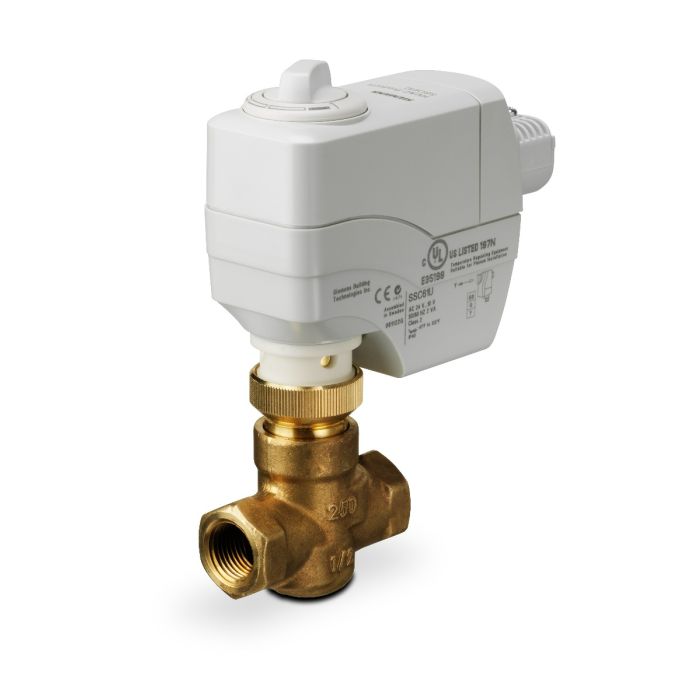

Siemens 262-02021 Globe Valve Assembly, 2 Way, 1/2 in. Replacement MPN

Product Description

The Siemens 262-02021 is a globe valve assembly designed for HVAC systems. This two-way valve features a half-inch connection and is equipped with a stainless steel trim. It utilizes a direct coupled actuator for modulating control and includes a spring return feature. The valve is specifically designed to handle water, water-glycol solutions, and low-pressure steam applications.

• ANSI Leakage Class IV (0.01% of Cv)
• Compatible with 24 VAC/DC
• Close-off pressure of 95 psi

Product Highlights

This valve assembly is suitable for various HVAC applications. It provides reliable performance in controlling hot or chilled water flow.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 262-02021

Technical Specifications

• Size: 1/2 inch
• Power Consumption: 2.0 VA
• Operating Conditions: 34°F to 122°F (1°C to 50°C)
• Flow Characteristic: Modified Equal Percentage
• Service: Water, Water-Glycol Solutions To 50%, Low Pressure Steam <15 psi
• Electrical Connection: Terminal Block For Plenum Cable
• Close-Off Pressure: 95 psi
• Mounting: NEMA 1
