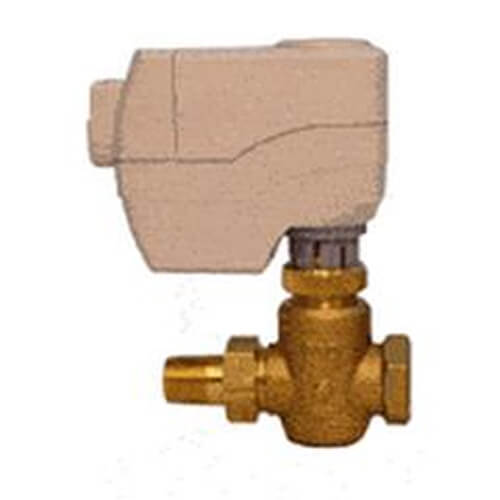

Siemens 262-02013 3/4 Inch NPT x Union Male Powermite MT Series 2-Way Mixing N.C. Valve Actuator Assembly, 24Vac, 6.3 Cv

Product Description

Siemens Powermite MT Series Valve Actuator, model 262-02013, offers reliable control of HVAC systems. This actuator is suitable for handling hot water, chilled water, and steam applications with ease.

• Direct-coupled with a universal bonnet for sturdy connections.
• Constructed with brass trim, enhancing its durability and operational efficiency.
• Supports 24Vac power supply and has a flow coefficient (Cv) of 6.3.

Product Highlights

This Siemens valve actuator is designed for normally closed operation in a 2-way mixing valve configuration. It ensures precise control in HVAC systems enhancing system reliability with minimal leakage (Class IV).

Product Information

Technical Specifications

• Type: 2-Way mixing valve actuator
• Size: 3/4 NPT x Union Male
• Voltage: 24Vac
• Material: Brass
• Position: Normally Closed
• Control Signal: 0-10V
• Mounting: NEMA 1
• Close-Off Pressure: 40 psi
• Spring Return: Yes
• Actuator Type: SSC61.5U (Modulating)
