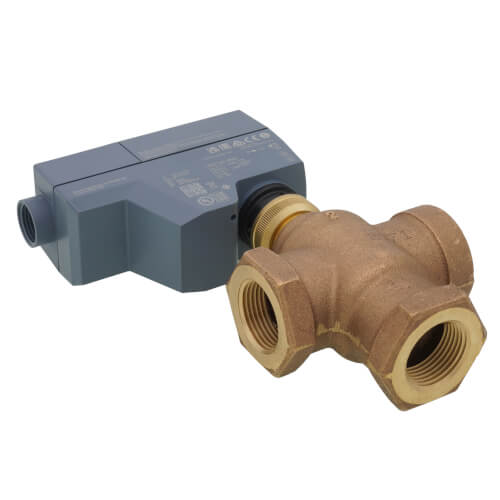

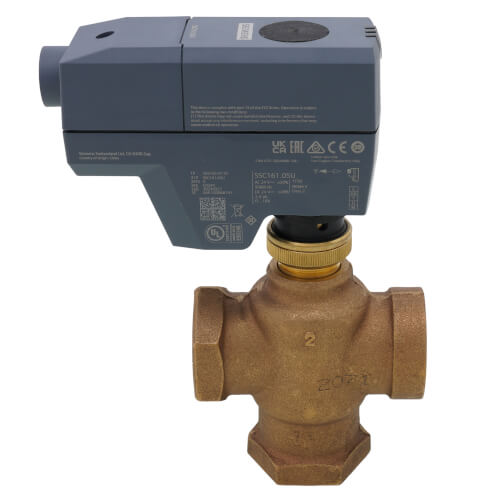

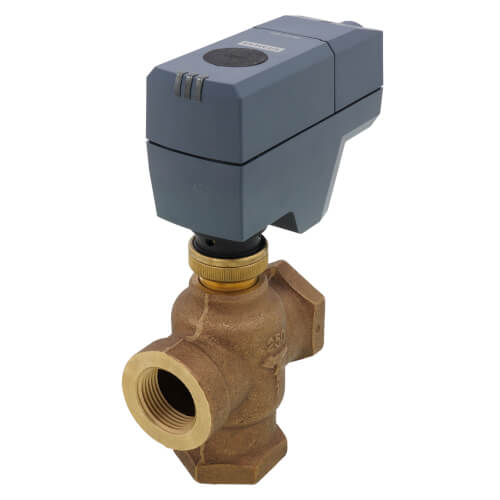

Siemens 261-02071 1 Inch NPT Powermite MT Series 3-Way Mixing Normally Open Valve Actuator Assembly 24Vac 10.0 Cv

Product Description

The Siemens 261-02071 represents a cutting-edge solution for HVAC professionals, featuring a 1-inch NPT 3-way mixing valve with a normally open position, augmented by a robust actuator assembly. This device is tailored to handle hot or chilled water mixing and controlling glycol solutions up to 50% concentration.

• Direct-coupled with universal bonnet ensuring streamlined valve operation.
• Features brass trim, ensuring durability and reliable performance under varying conditions.
• Leakage class IV certification (0.01% of Cv), guaranteeing precise fluid control.

Product Highlights

Operates efficiently on a 24Vac power supply and adheres to ANSI standards for safety and performance. Ideal for environments demanding precise thermal management.

Product Information

Standard Information

• Brand: Siemens
• MPN: 261-02071
• Type: Valve Actuator
• Series: Powermite MT Series
• Actuator Type: Modulating

Technical Specifications

• Voltage: 24Vac
• Valve Type: 3-Way
• Material: Brass
• Position: Normally Open
• Connection Type: FNPT x FNPT
• Flow Capacity (Cv): 10
