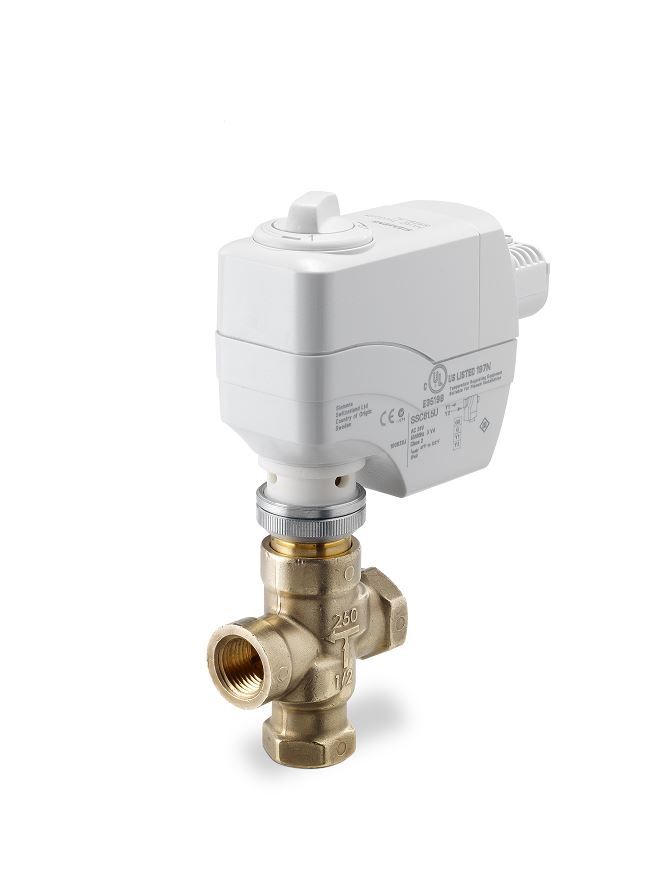

Siemens 261-02067 Globe valve assembly 24 Vac (1/2 in) 599-02067

Product Description

Siemens 261-02067 is a 3-way globe valve assembly with a modulating direct-coupled actuator rated 24 VAC/DC and 0-10 VDC control. The valve provides a Cv of 1.6 with 1/2 in NPT connections and brass trim, and is configured for normally closed, non-spring-return operation. It features a NEMA 1 housing, linear flow characteristic, and is suitable for water, water-glycol solutions up to 50%, and low-pressure steam under 15 psi within 41°F to 122°F (5°C to 50°C).

• 3-way globe valve, 1/2 in NPT connections, Cv 1.6, linear flow characteristic
• Direct-coupled modulating actuator, 200 N force; actuator rated 24 VAC/DC and accepts 0-10 VDC control (actuator power 2.0 VA; power consumption 0.8 VA)
• Brass trim, NEMA 1 enclosure; suitable for water, water-glycol up to 50%, and low-pressure steam <15 psi; electrical connection via plenum cable or 3/8-inch flex conduit

Product Highlights

3-way 1/2 in NPT mixing globe valve; 1.6 Cv; 24 Vac/DC modulating actuator; non-spring return; NEMA 1

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 261-02067
• Country of Origin: US

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 261-02067
• Valve Type: 3-way globe (mixing) valve
• Connection: 1/2 in NPT (female)
• Valve Size: 1/2 in
• Cv (Flow Coefficient): 1.6
• Flow Characteristic: Linear
• Trim Material: Brass
• Body Material: Brass
• Actuator: Direct-coupled modulating actuator, 200 N
• Actuator Model: SSC61U (reported in some configurations)
• Control Signal: 0-10 VDC (modulating)
• Supply Voltage: 24 VAC/DC
• Actuator Power (VA): 2.0 VA
• Power Consumption (VA): 0.8 VA
• Return Type: Non-spring return (fail in place)
• Action: Normally closed
• Housing / Enclosure Rating: NEMA 1
• Service / Media: Water; water-glycol solutions up to 50%; low-pressure steam under 15 psi
• Operating Temperature: 41°F to 122°F (5°C to 50°C)
• Electrical Connection: Plenum cable or 3/8-inch flex conduit
• Close-off Pressure: 95 psi
• Flow Pattern: Mixing
• Approvals / Certifications: CE; EMC directive; UL file E220114
