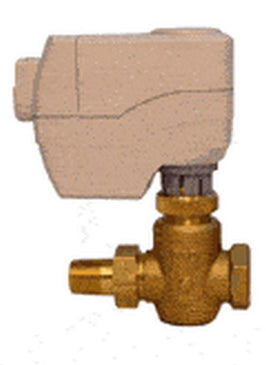

Siemens 261-02059 Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Siemens Globe Valve Assembly, MPN 261-02059, is designed for a range of flow control applications. This valve operates in water, water-glycol solutions, and low-pressure steam management. It features a direct-coupled actuator and a modified equal percentage flow characteristic, making it suitable for precise modulation in HVAC systems.

• NPT connection
• Brass trim with ANSI Leakage Class IV
• Operating temperature range of 34 F to 122 F

Product Highlights

This globe valve offers reliable performance for controlling flow in heating and cooling systems.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 261-02059

Technical Specifications

• Power Consumption: 2.0 VA
• Close-Off Pressure: 50 psi
• Flow Characteristic: Modified Equal Percentage
• Electrical Connection: Terminal Block for Plenum Cable
• Service: Water, Water-Glycol Solutions to 50%, Low Pressure Steam <15 psi
• Operating Conditions: 34 F to 122 F (1 C to 50 C)
• Housing: NEMA 1
