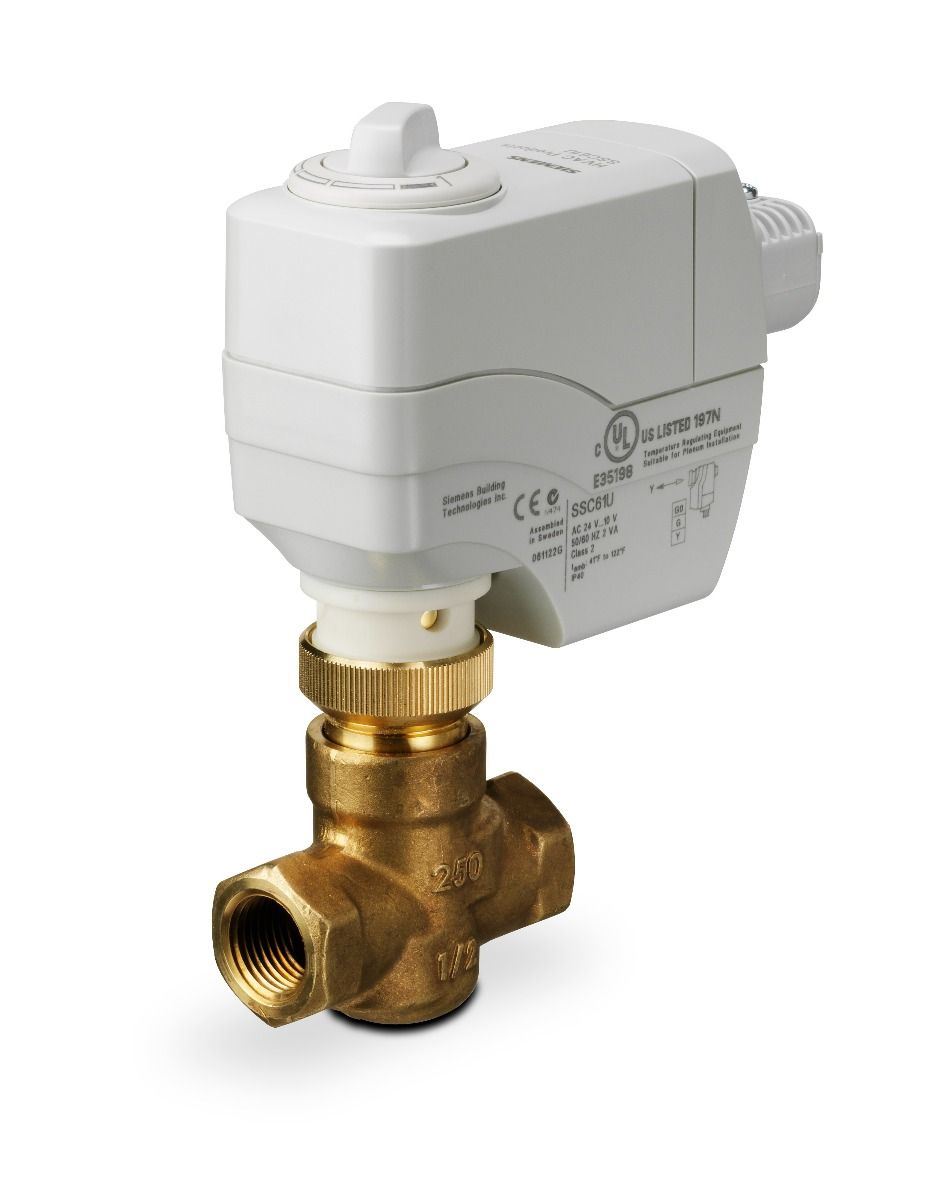

Siemens 261-02021 Globe Valve Assembly, 2 Way, 1/2 in.

Product Description

The Siemens 261-02021 is a globe valve assembly designed for two-way operation. It features a one-half inch size suitable for various HVAC applications. This valve operates on 24 VAC and works with direct coupled actuators, making it suitable for modulating control tasks.

• Stainless steel trim for durability and reliability.
• ANSI Leakage Class IV allowing for minimal leakage.
• Supported for both normally closed configurations and modulating control signals.

Product Highlights

This valve is ideal for controlling hot or chilled water and water-glycol solutions. Its design allows for use in low-pressure steam applications up to fifteen psi.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 261-02021

Technical Specifications

• Size: 1/2 inch
• Voltage: 24 VAC
• Flow Capacity (Cv): 1.6
• Close-Off Pressure: 95 psi
• Operating Conditions: 34 F to 122 F (1 C to 50 C)
• Electrical Connection: Terminal block for plenum cable
• Service: Water, water-glycol solutions to 50%, low-pressure steam under 15 psi
• Power Consumption: 2.0 VA
• Flow Characteristic: Modified equal percentage
