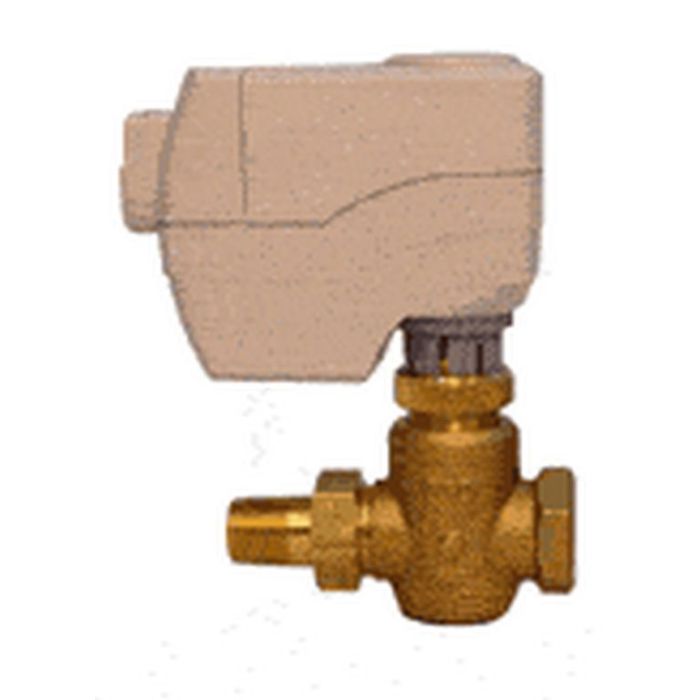

Siemens 261-02013 Globe Valve Assembly, 2 Way, 3/4 in. Replacement MPN

Product Description

The Siemens Globe Valve Assembly, identified by MPN 261-02013, is designed for efficient control of fluids in HVAC systems. This assembly includes a 2-way valve featuring brass trim and is powered by a direct coupled actuator.

• NPT connection type for reliable installation
• Suitable for water and water-glycol solutions
• Typically used for modulating control applications

Product Highlights

This valve assembly operates with a flow capacity of 6.3 Cv, ensuring effective management of fluid flow. It is normally closed and works with control signals of zero to ten VDC.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 261-02013
• Minimum Order Quantity: 1
• Availability: Not in stock

Technical Specifications

• Housing: NEMA 1
• Service: Water, water-glycol solutions to fifty percent, low pressure steam under fifteen psi
• Power Consumption: 2.0 VA
• Close-Off Pressure: 40 psi
• Flow Characteristic: Modified equal percentage
• Operating Conditions: 34 F to 122 F (1 C to 50 C)
• Electrical Connection: Terminal block for plenum cable
• Valve Size: 3/4 inches
