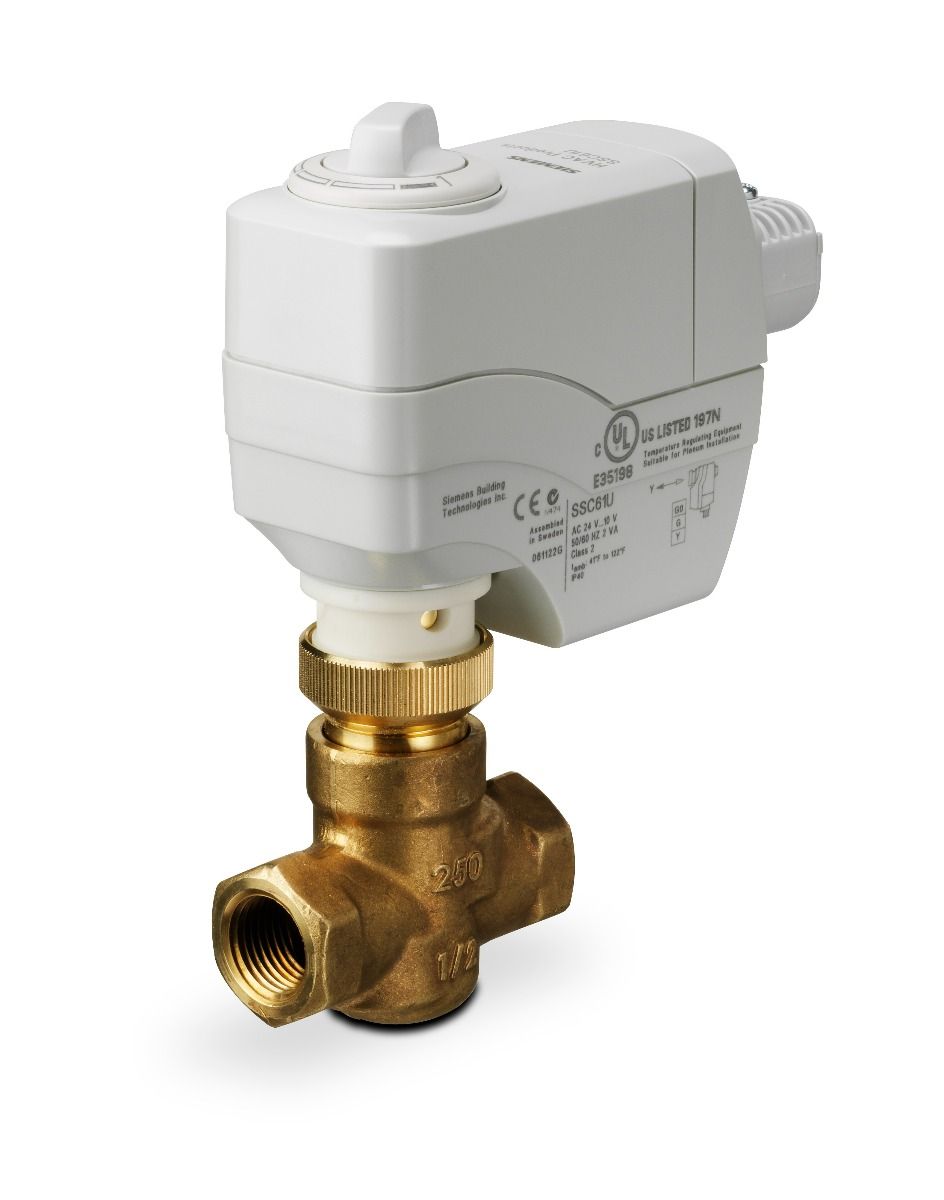

Siemens 261-02010 Globe Valve Assembly, 2 Way, 1/2 in.

Product Description

The Siemens 261-02010 is a globe valve assembly designed for HVAC control. This valve features a 2-way operation and is compatible with water and water-glycol solutions. It operates on low pressure steam and is suited for a range of applications that require reliable flow control.

• ANSI Leakage Class IV (0.01% Of Cv)
• Brass trim with a direct coupled actuator
• Modulating control with 0 to 10 VDC input

Product Highlights

This valve is ideal for systems that need precise control of fluid flow, making it suitable for HVAC systems in commercial and industrial settings.

Product Information

Standard Information

• Brand: Siemens
• MPN: 261-02010

Technical Specifications

• Housing: NEMA 1
• Service: Water, Water-Glycol Solutions To 50%, Low Pressure Steam <15 psi
• Power Consumption: 2.0 VA
• Close-Off Pressure: 50 psi
• Flow Characteristic: Modified Equal Percentage
• Operating Conditions: 34 F To 122 F (1 C To 50 C)
• Electrical Connection: Terminal Block For Plenum Cable
• Dimensions: Not specified
