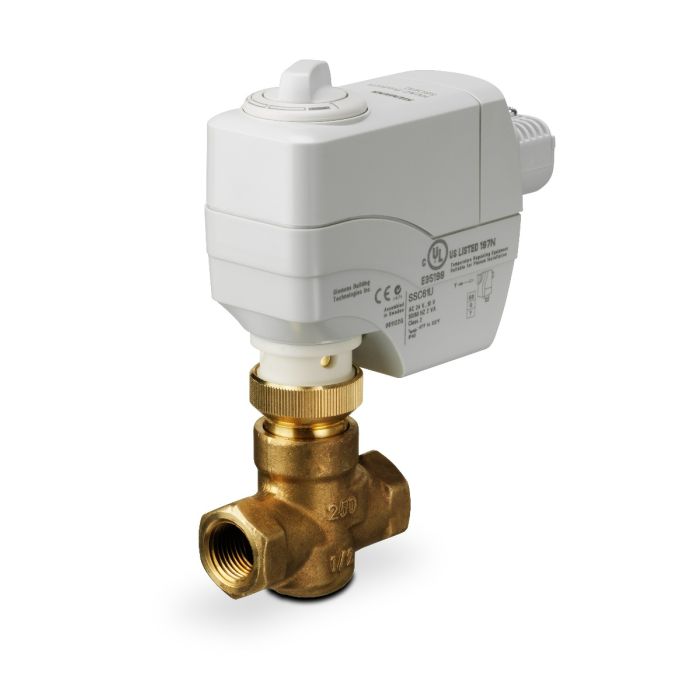

Siemens 260-02021 Globe Valve Assembly, 2 Way, 1/2 in.

Product Description

The Siemens 260-02021 Globe Valve Assembly is designed for use in HVAC systems. This valve features a two-way design with a half-inch connection. It is suitable for NPT installation and operates at a flow coefficient of 1.6 Cv. The assembly comes with a stainless steel trim and includes a direct coupled actuator.

• ANSI Leakage Class IV (0.01% of Cv)
• Spring return actuator with a force rating of 200 N
• Normally closed configuration with floating control

Product Highlights

This valve is designed to control the flow of water and water-glycol solutions effectively, ensuring reliable performance in various applications.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 260-02021

Technical Specifications

• Housing: NEMA 1
• Service: Water, Water-Glycol Solutions to 50%, Low Pressure Steam under 15 psi
• Power Consumption: 0.8 VA
• Close-Off Pressure: 95 psi
• Flow Characteristic: Modified Equal Percentage
• Operating Conditions: 41 F to 122 F (5 C to 50 C)
• Electrical Connection: Plenum cable or 3/8-inch flex conduit
