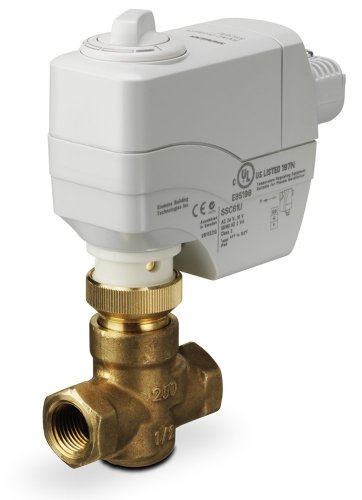

Siemens 259-02041 Valve Assembly Normally Open, Modified Equal Percentage, 1/2 inch, 4.0 Cv, Female by Female, Brass Trim, Electronic Actuator, Fail-in-Place, Floating

Product Description

The Siemens 259-02041 valve assembly is an essential component in HVAC systems, designed for precise control of water flow. This model by Siemens, a leader in automation and control technology, integrates a 1/2 inch NPT female brass valve and a robust electronic actuator. It's specifically engineered for applications requiring a normally open configuration with floating control.

• Durable brass body ensuring long-term reliability and resistance to corrosion.
• Modified equal percentage type for more accurate flow control.
• Fail-in-place functionality provides stability in case of power failure.

Product Highlights

Suitable for both commercial and residential installations, the Siemens 259-02041 offers a flow coefficient (Cv) of 4.0, making it ideal for medium flow applications. Its electronic actuator operates at 24 Volts AC, suitable for systems requiring precise electronic control.

Technical Specifications

• Valve Type: Two-way, normally open
• Connection Size: 1/2 inch NPT female to female
• Material: Brass
• Flow Rate: 4.0 Cv
• Control Type: Electronic, floating
• Operating Voltage: 24 Volts AC
• Pressure Class: ANSI Leakage Class IV
• Temperature Range: Up to 230 degrees Fahrenheit
