Siemens 259-02026 Globe Valve Assembly 24 VAC 0.8 VA (1/2 in) 599-02026

Product Description

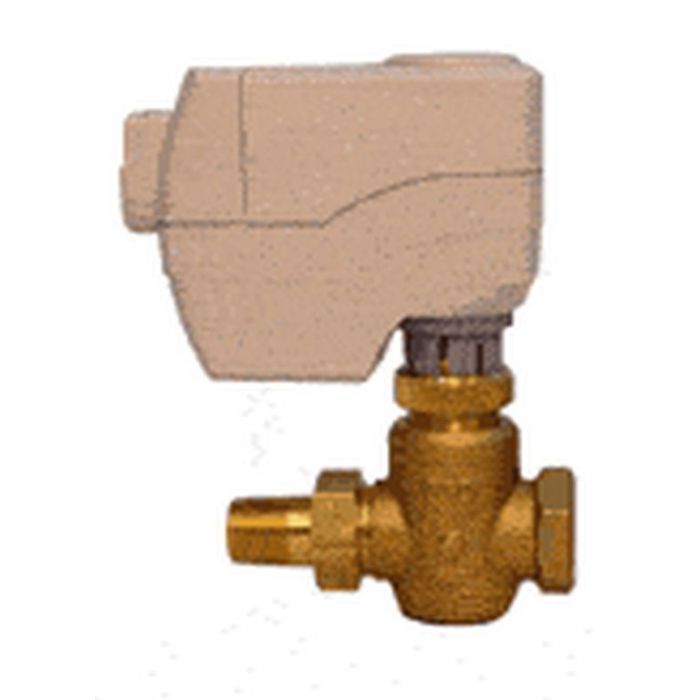

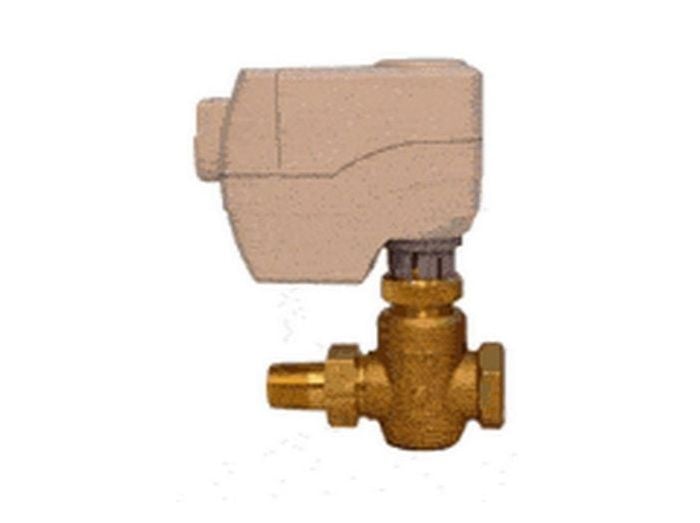

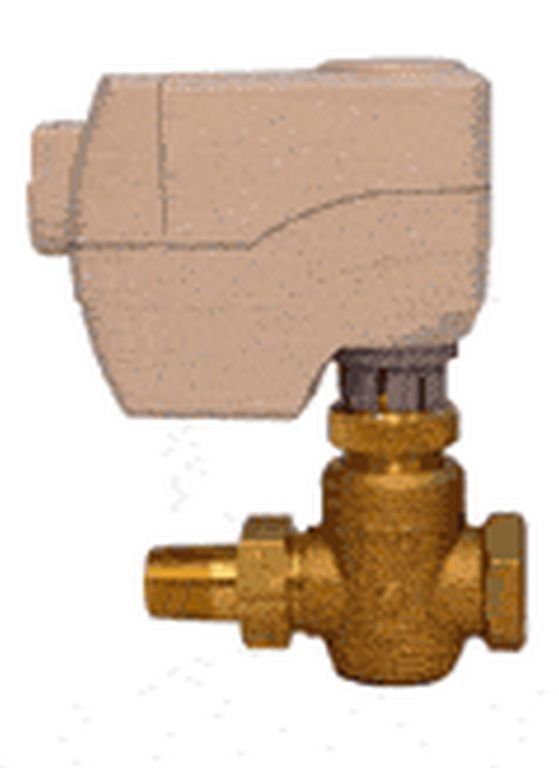

Siemens 259-02026 is a 2-way globe valve assembly with a 1/2 in NPT connection and a 4 Cv flow capacity. It includes stainless steel trim and a direct-coupled, non-spring-return actuator that provides 200 N force. The assembly operates at 24 VAC with 0.8 VA consumption, offers normally closed floating 3-position control, and is suitable for water, water-glycol (to 50%), and low-pressure steam below 15 psi.

• 24 VAC operation, 0.8 VA power consumption; normally closed, floating 3-position control
• Direct-coupled, non-spring-return actuator with 200 N force; modified equal percentage flow characteristic
• Stainless steel trim, 4 Cv flow capacity, ANSI Leakage Class IV; 1/2 in NPT (female x union male) connection

Product Highlights

2-way globe valve assembly, 1/2 in NPT, 4 Cv, stainless steel trim, 24 VAC, ANSI Leakage Class IV

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 259-02026

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 259-02026
• Product Type: Globe valve assembly
• Valve Type: 2-way
• Valve Size: 1/2 in
• Connection: 1/2 in NPT (female x union male)
• Cv: 4.0
• Trim Material: Stainless steel
• Actuator Type: Direct-coupled, non-spring return
• Actuator Force: 200 N
• Control: Normally closed; floating control; 3-position
• Input Voltage: 24 VAC
• Power Consumption: 0.8 VA
• Housing / NEMA Rating: NEMA 1
• Service / Media: Water; water-glycol solutions to 50%; low-pressure steam <15 psi
• Close-off Pressure: 95 psi
• Flow Characteristic: Modified equal percentage
• Operating Temperature: 41 F to 122 F (5 C to 50 C)
• Electrical Connection: Plenum cable or 3/8-inch flex conduit
• Leakage Class: ANSI Leakage Class IV (0.01% of Cv)
• Assembly: Direct-coupled valve and actuator assembly
