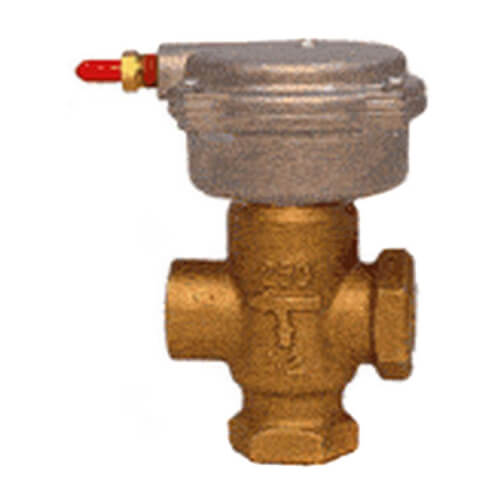

Siemens 258-02071 1 NPT 3-Way Mixing Valve Assembly w/ 2 Pneumatic Actuator 10 Cv

Product Description

The Siemens 258-02071 features a 1 NPT 3-way mixing valve assembly with a pneumatic actuator. This product is designed for efficient mixing of hot and chilled water as well as control of glycol solutions. The assembly includes a 599-02071 valve and a pneumatic actuator operating at 8-13 psi. Ideal applications include HVAC systems and water temperature regulation.

• Includes one Pneumatic Actuator.
• Compatible with MT Series pneumatic or electronic actuators.
• Minimum force output of 67 lb (300 N).

Product Highlights

This valve assembly provides reliable mixing and is suited for various HVAC applications.

Product Information

Standard Information

• Manufacturer: Siemens Building Technology
• Minimum Quantity: 1

Technical Specifications

• Body Pattern: 3-Way
• Connection Type: FNPT x FNPT
• Flow Capacity (Cv): 10
• Fail Safe Mode: Spring Return
• Weight: 2 lbs
• Shipping Dimensions: 5 inches x 5 inches x 5 inches
• Material: Brass
