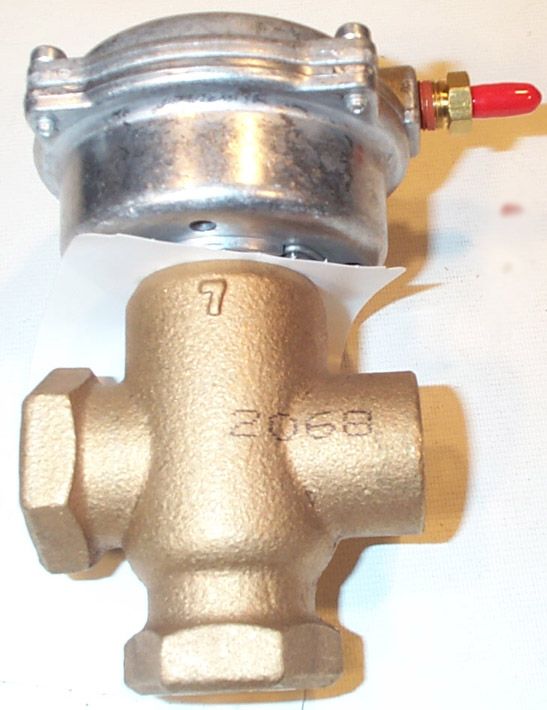

SIEMENS 258-02070 Valve Assembly 3-Way Mix Linear Three-Quarter Inch FxF 63 Cv 8-13 psi SR Pneumatic

Product Description

The Siemens 258-02070 3/4 Inch NPT 3-Way Mixing Valve Assembly is designed for robust performance in controlling the flow of water and glycol solutions. Its compatibility with MT Series pneumatic or electronic actuators makes it a versatile choice for professional installations.

• Durable brass body with a 3-way configuration for efficient flow direction control.
• Direct-coupled universal bonnet ensures a secure and leak-proof performance.
• ANSI Leakage Class IV, offering optimal tightness and environmental safety.

Product Highlights

With a flow capacity of 6.3 Cv, this valve assembly is ideal for applications requiring precise water mixing. The unit comes with a 2-inch pneumatic actuator delivering a force of 300 N, suitable for mixing hot or chilled water systems.

Product Information

Standard Information

• Brand: Siemens
• MPN: 258-02070

Technical Specifications

• Valve Size: Three-Quarter Inch
• Valve Connection: NPT
• Body Material: Brass
• Max Pressure: 125 psi WOG
• Piping Configuration: 3-Way
• Weight: 2 lbs
