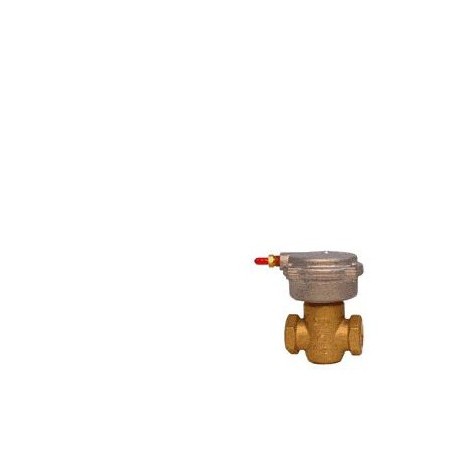

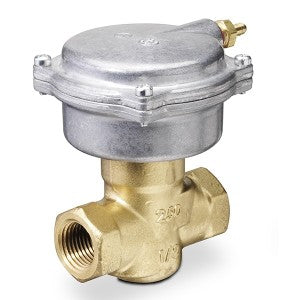

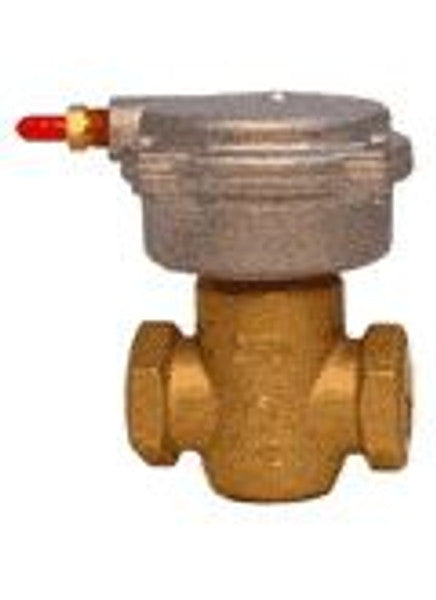

Siemens 256-02017 Valve Assembly ANSI 250 MT Series 2-Way NC Modified Eq Pct 1/2 in

Product Description

The Siemens 256-02017 valve assembly is a 2-way valve designed for applications requiring reliable control. This valve meets ANSI 250 standards and features a normally closed operation with a modified equal percentage flow characteristic. It is equipped with a half inch FxF connection, a flow coefficient of 0.63 Cv, and operates within a spring pressure range of ten to fifteen psi. The valve is UL Listed for safe use in plenum installations.

• UL Listed for plenum installations
• Direct coupling for easy installation
• Manual override option available

Product Highlights

This valve is suitable for various pneumatic applications where precise flow control is needed. Its compact design allows for efficient use in tight spaces.

Product Information

Standard Information

• Brand: Siemens
• MPN: 256-02017

Technical Specifications

• Cv: 0.63 Cv
• Pattern: 2-way
• Size: 1/2 inches
• Control Signal: Pneumatic
• Product Type: MT Series
• Valve Size: 0.5
• Valve Type: Globe
• Body Rating: ANSI 250
• Max Temp: 250 °F
• NSR/SR Actuator: Spring Return
• Fail-safe Position: Normally Closed
• Control Signal Type: 10-15 psi
• NEMA Rating: 1
• Aux Switches: 0
