Siemens 256-02011 Globe Valve Assembly 10-15 psi (1/2 in)

Product Description

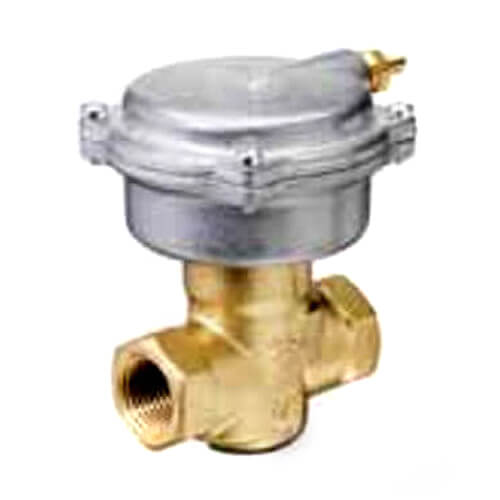

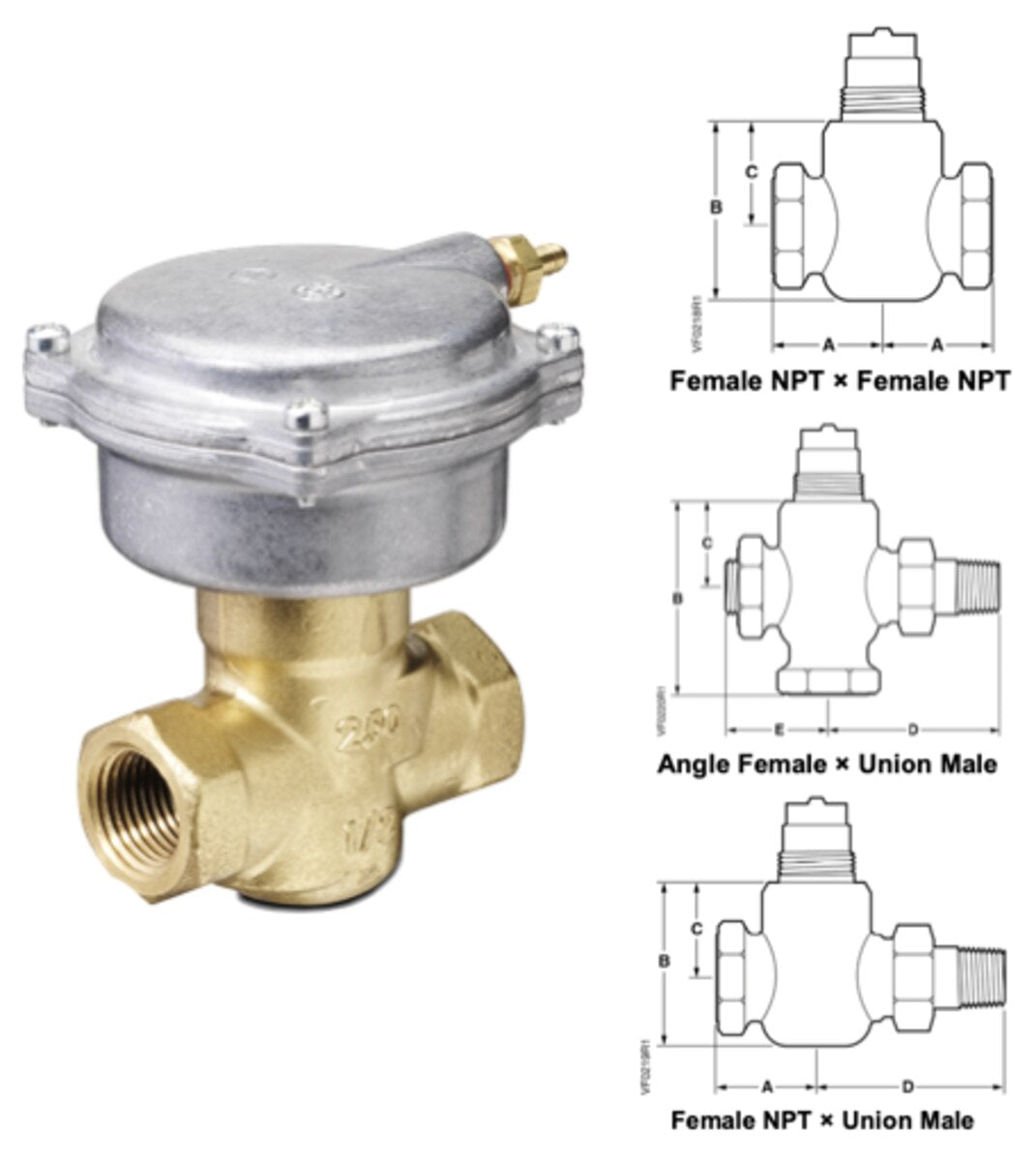

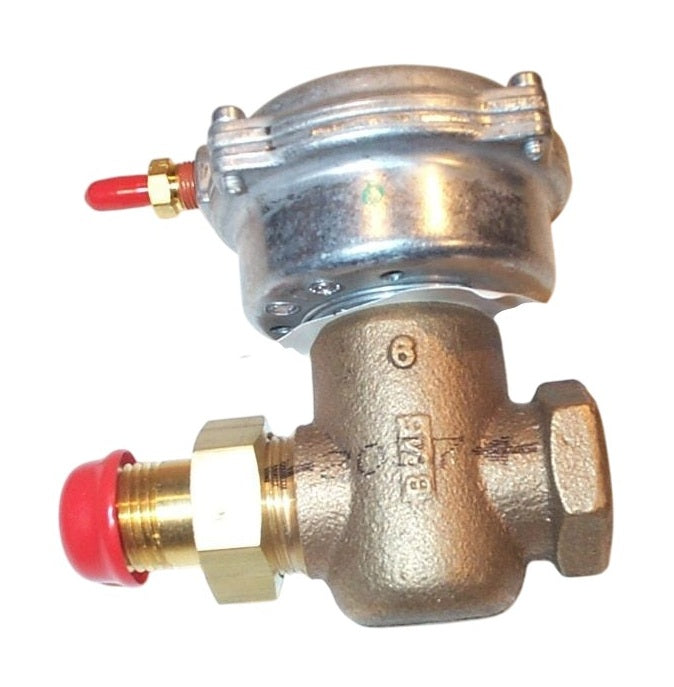

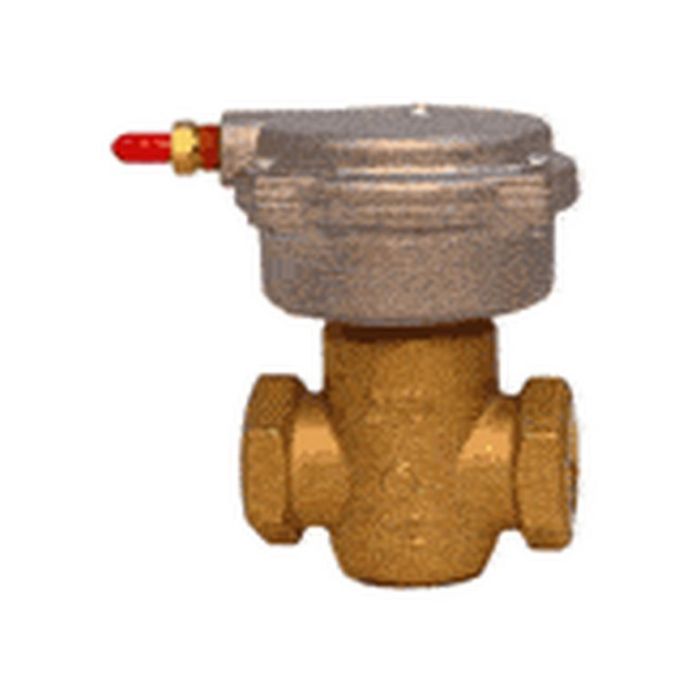

The Siemens 256-02011 is a 2-way globe valve assembly with a 1/2 in. brass valve body and a pneumatic actuator. It has a flow coefficient (Cv) of 4, a 7/32 in. actuator stroke and a 1/8 in. NPT barbed air connection, and operates with a 10–15 psi actuator pressure range. The valve is normally closed and rated for water and water-glycol solutions to 50% at 35°F to 250°F.

• 2-way, 1/2 in. brass globe valve; flow coefficient Cv = 4; normally closed
• Pneumatic actuator with 7/32 in. stroke, 2 in. actuator size, 10–15 psi spring/pressure range and 1/8 in. NPT barbed air connection
• Service for water and water-glycol up to 50%; close-off pressure 50 psi; operating temperature 35°F to 250°F; modified equal percentage flow characteristic

Product Highlights

2-way 1/2 in brass globe valve, Cv 4, pneumatic actuator (7/32 in stroke, 10–15 psi), normally closed

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 256-02011

Technical Specifications

• Brand: Siemens
• MPN: 256-02011
• Product Type: Globe valve assembly
• Valve Type: 2-Way
• Size: 1/2 in.
• Connection Type: NPT
• Flow Coefficient (Cv): 4
• Trim Material: Brass
• Actuator Type: Pneumatic valve actuator
• Actuator Size: 2 in.
• Actuator Stroke: 7/32 in.
• Actuator Pressure Range: 10-15 psi
• Air Connection: 1/8 in. NPT barbed fitting
• Action: Normally closed
• Service: Water, water-glycol solutions to 50%
• Close-Off Pressure: 50 psi
• Flow Characteristic: Modified equal percentage
• Operating Temperature Range: 35°F to 250°F (≈2°C to 120°C)
