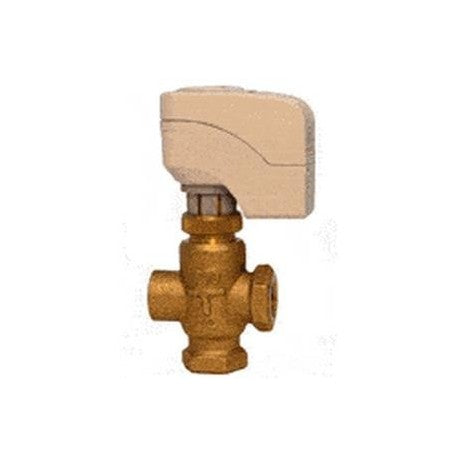

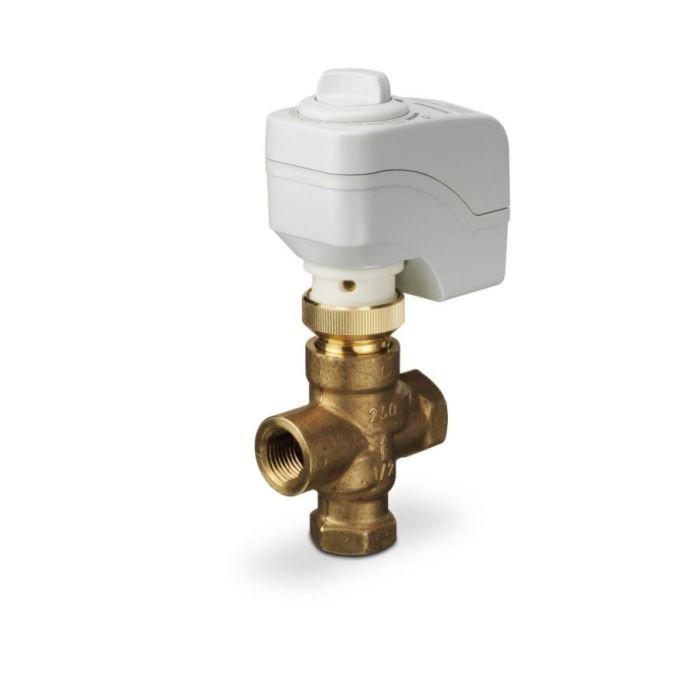

Siemens 255-01137 Globe Valve Assembly 24 VAC/DC (1/2 in.) 599-01137

Product Description

Siemens 255-01137 is a 3-way globe valve assembly with a direct-coupled 200 N actuator designed for modulating control of water and glycol solutions up to 50%. The valve uses a 0 to 10 VDC control signal, operates at 24 VAC/DC with 2.0 VA power consumption, and provides a Cv of 4 with a normally closed fail position and ANSI Class 250 rating.

• 3-way globe valve, 1/2 in. NPT, flow coefficient Cv = 4; brass trim; ANSI Class 250
• Direct-coupled 200 N actuator, non-spring return; modulating control input 0 to 10 VDC; nominal 24 VAC/DC, 2.0 VA
• Modified equal percentage flow characteristic; close-off pressure 40 psi; operating range 34 F to 122 F (1 C to 50 C); NEMA 1 enclosure

Product Highlights

3-way 1/2 in. globe valve with 4 Cv, brass trim, 200 N direct-coupled non-spring return actuator, 24 VAC/DC modulating control (0–10 VDC), ANSI Class 250

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 255-01137

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 255-01137
• Valve Type: 3-way globe valve
• Size: 1/2 in.
• End Connection: NPT
• Flow Coefficient (Cv): 4
• Trim Material: Brass
• Actuator Type: Direct coupled actuator
• Actuator Force: 200 N
• Return Type: Non-spring return
• Control Signal: 0 to 10 VDC (modulating)
• Nominal Voltage: 24 VAC/DC
• Power Consumption: 2.0 VA
• Fail Position: Normally closed
• Standards: ANSI Class 250
• Close-Off Pressure: 40 psi
• Flow Characteristic: Modified equal percentage
• Operating Temperature: 34 F to 122 F (1 C to 50 C)
• Electrical Connection: Terminal block for plenum cable
• Enclosure Rating: NEMA 1
• Service/Media: Water and glycol solutions up to 50%
