Siemens 255-01135 Globe Valve Assembly 24 VAC/DC (1/2 in.)

Product Description

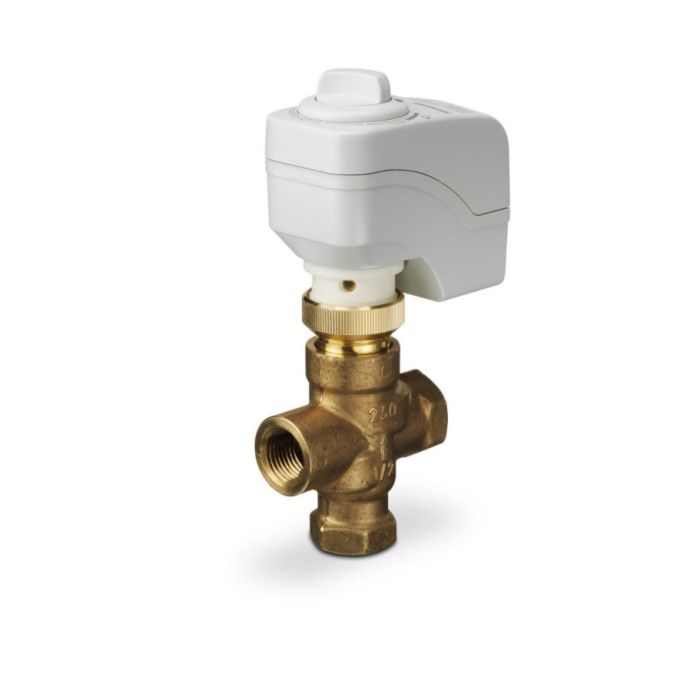

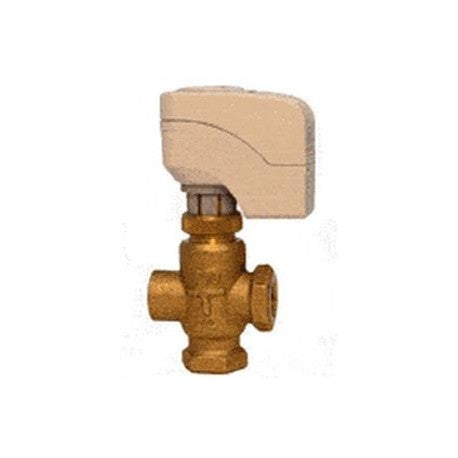

Siemens 255-01135 is a 3-way globe valve assembly designed for HVAC water mixing applications. The assembly features a 1.6 Cv valve with NPT connections, brass trim and a direct-coupled actuator that provides 200 N force. It accepts a 0-10 VDC modulating control signal and operates on 24 VAC/DC with a 2.0 VA power draw. The valve is normally closed, rated ANSI Class 250 and NEMA 1 for indoor equipment use.

• 1/2 in. 3-way globe valve with 1.6 Cv and NPT end connections
• Direct-coupled actuator (SSB61U) providing 200 N force; non-spring return, fail-in-place
• 24 VAC/DC input, 2.0 VA power consumption, modulating control 0-10 VDC; suitable for water and up to 50% glycol

Product Highlights

3-way mixing globe valve, 1.6 Cv, 1/2 in. NPT, direct-coupled 200 N actuator, 24 VAC/DC with 0-10 VDC control, ANSI Class 250, NEMA 1

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 255-01135

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 255-01135
• Model/Series: MZ series (Powermite 599 MZ)
• Product Type: 3-way globe valve assembly
• Valve Type: Three-way mixing globe
• Port Configuration: 3-way mixing
• Valve Size: 0.5 in (1/2 in.)
• End Connection: NPT (female x female)
• Flow Coefficient (Cv): 1.6
• Flow Characteristic: Modified equal percentage
• Trim Material: Brass
• Body Material: Bronze
• Actuator Model: SSB61U
• Actuator Type: Direct-coupled
• Actuator Force: 200 N
• Spring Return Function: Non-spring return (fail-in-place)
• Control Signal: 0-10 VDC (modulating)
• Input Voltage: 24 VAC/DC
• Power Consumption: 2.0 VA
• Default State: Normally closed
• Close-off Pressure: 70 psi
• Max Pressure: 125 psi WOG
• Max Differential Pressure: 25 psi
• Medium: Water; water with anti-freeze (glycol solutions up to 50%)
• Operating Temperature: 34 F to 122 F (1 C to 50 C)
• Electrical Connection: Terminal block for plenum cable
• NEMA Rating: NEMA 1
• Body Rating (ANSI): ANSI Class 250
