Product Description

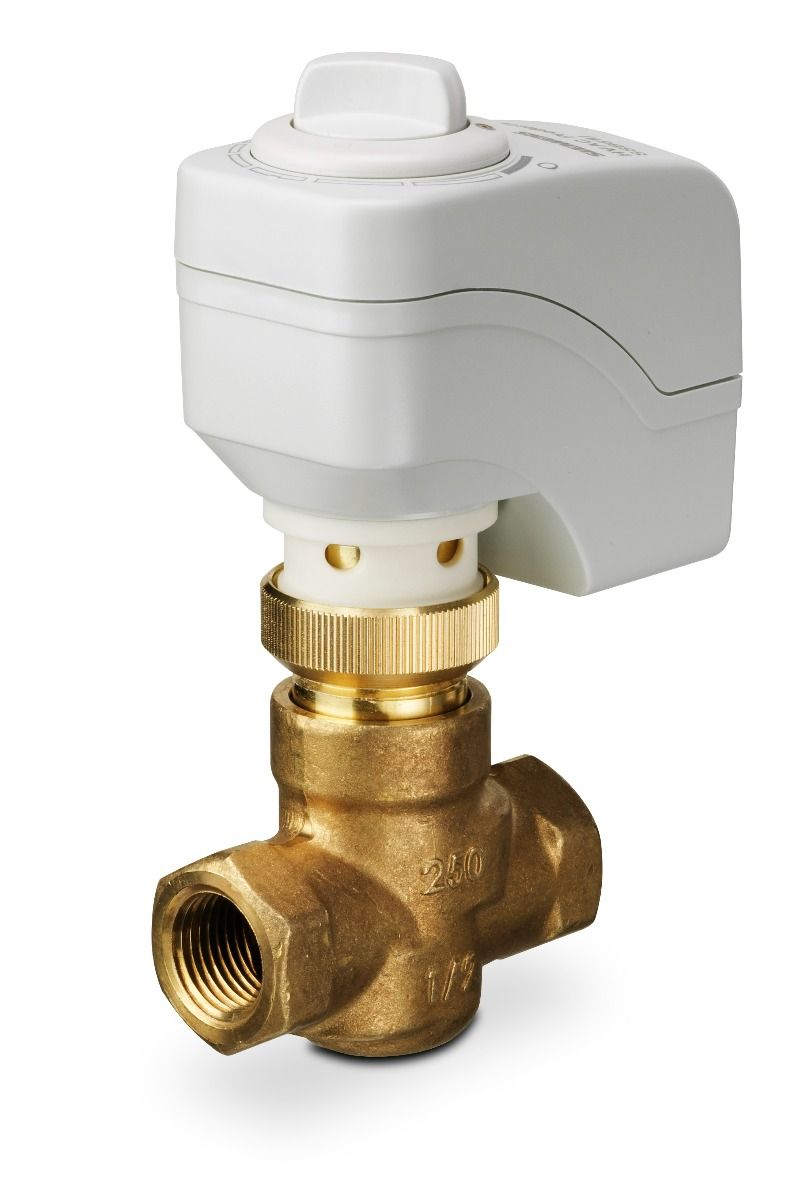

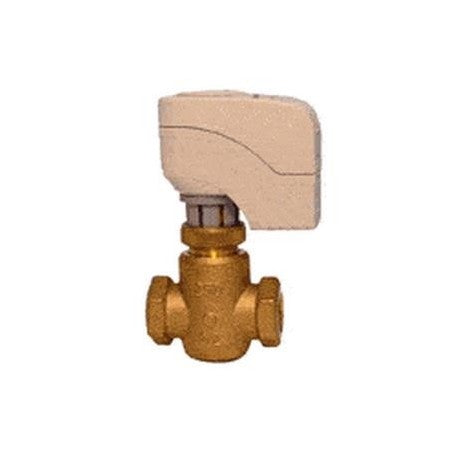

Siemens 255-01114 is a globe valve assembly with a direct-coupled electromechanical actuator configured as a two-way, normally closed control valve for 1 in NPT piping. It provides a 10 Cv flow coefficient with brass trim, ANSI Class 250 body rating, and a 200 N non-spring-return actuator operating at 24 VAC/DC with 2.0 VA and 0-10 VDC modulating control. Rated NEMA 1, it is suitable for water and glycol solutions up to 50% and operates between 1 C and 50 C.
- Two-way, normally closed globe valve; 1 in NPT connection; 10 Cv; ANSI Class 250
- Direct-coupled electromechanical actuator, 200 N force; non-spring return; 24 VAC/DC, 2.0 VA; 0-10 VDC modulating control
- Brass trim and brass body; NEMA 1 enclosure; close-off pressure 30 psi; modified equal percentage flow; suitable for water and glycol up to 50%
Product Highlights
2-way globe valve assembly, 1 in NPT, 10 Cv with 24 VAC/DC modulating actuator and 200 N non-spring return; ANSI Class 250; suitable for water and glycol up to 50%.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: 255-01114
-
Country of Origin: United States of America
Technical Specifications
-
Brand: Siemens
-
Manufacturer Part Number: 255-01114
-
Replacement MPN: 599-01114
-
Series / Model: MZ / Powermite 599 (assembly configured with SSB61U/SSB MZ Series actuator)
-
Valve Type: Globe valve, 2-way
-
Action: Normally closed
-
Size: 1 in (NPT)
-
End Connection: NPT (female x female / internal thread variants)
-
Cv (Flow Coefficient): 10 Cv
-
Trim Material: Brass
-
Body Material: Brass
-
Actuator Type: Direct-coupled electromechanical actuator (SSB MZ series / SSB61U)
-
Actuator Force / Torque: 200 N (linear actuator force as listed by manufacturer)
-
Return Type (Fail-Safe): Non-spring return (fail-in-place)
-
Control Signal: 0-10 VDC modulating (compatible with two-position and floating actuators)
-
Input Voltage: 24 VAC / 24 VDC nominal
-
Power Consumption: 2.0 VA (actuator proportional power draw)
-
NEMA Rating / Enclosure: NEMA 1
-
Close-off Pressure: 30 psi (close-off pressure as listed)
-
Max Pressure: 125 psi WOG (listed for some configurations â application dependent)
-
Flow Characteristic: Modified equal percentage
-
Operating Temperature Range: 34 F to 122 F (1 C to 50 C)
-
Electrical Connection: Terminal block for plenum cable
-
Service / Media: Water; glycol solutions up to 50%
-
ANSI Class / Body Rating: ANSI Class 250
-
Intended Applications: Control of hot or chilled water for convectors, fan coil units, reheat coils and similar terminal units
