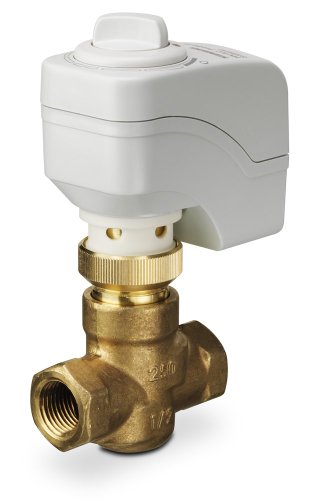

SIEMENS 254-01117 Zone Valve Assembly Powermite 599 MZ Series 0.63 Cv Replacement 254-01117

Product Description

The Siemens 254-01117 Zone Valve Assembly is a high-efficiency valve designed for hot or chilled water control in various HVAC applications. This valve is part of the Powermite 599 MZ Series and features an ANSI Class 250 certification. Its two-way, normally open, linear motion design optimizes system performance.

• Two-way zone control enhances system efficiency
• Equipped with an SSB81U 3-position, Fail-in-Place electro-mechanical actuator
• Compatible with female NPT connections and features durable brass trim

Product Highlights

This valve assembly operates with a maximum water temperature of 250 degrees Fahrenheit and a flow rate of 0.63 Cv, suitable for fan coils, convectors, and reheat coils.

Technical Specifications

• Product Type: Controller
• Connection Type/Size: Female NPT 1/2 inch
• Flow Rate: 0.63 Cv
• Maximum Water Temperature: 250 degrees Fahrenheit
• Electrical Connection: Terminal Block
• Safety Compliance: UL/cUL, CSA C22.2 No. 24-93
• Leakage: ANSI Leakage Class IV
• Motor Type: Non-Spring Return
