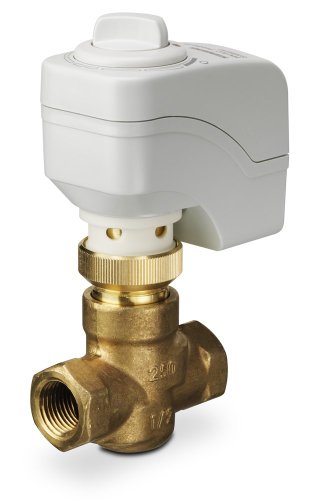

SIEMENS 254-01115 Zone Control Valve Assembly ANSI 250 2-Way Normally Open Linear 1/2-Inch 0.4 Cv

Product Description

The Siemens 254-01115 is a precision-engineered Zone Control Valve Assembly designed for effective control of hot or chilled water in various HVAC applications. This valve is part of the Powermite 599 MZ Series and features a robust bronze body suited for rigorous use. The valve operates with a 0.4 Cv linear flow and is easy to integrate with standard HVAC systems thanks to its 1/2-inch Female NPT connections.

• Efficient two-way zone control valve with electro-mechanical actuation.
• Durable construction with brass trim and a fail-in-place feature ensures reliability in all settings.
• ANSI Class 250 rating, ideal for residential and commercial HVAC applications.

Product Highlights

The Siemens 254-01115 Valve Assembly offers precise control with its linear actuator and is tailored for systems requiring reliable, consistent performance.

Product Information

Standard Information

• Brand: Siemens
• Usage: HVAC systems

Technical Specifications

• Connection Type: 1/2 inch Female NPT
• Flow Rate: 0.4 Cv
• Pressure: Standard Pressure Closeoff 60 psi
• Temperature: Max Water Temp 250 Degrees F
• Electrical Connection: Terminal Block
• Actuator Type: SSB81U 3-position, Electro-Mechanical
• Dimensions: Height 13 1/8 inches, Width 3 1/4 inches, Depth 1 1/2 inches
