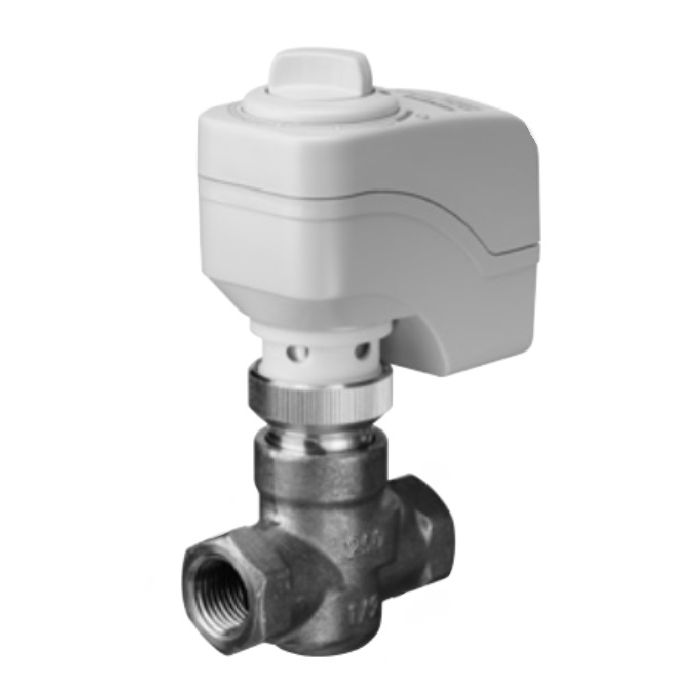

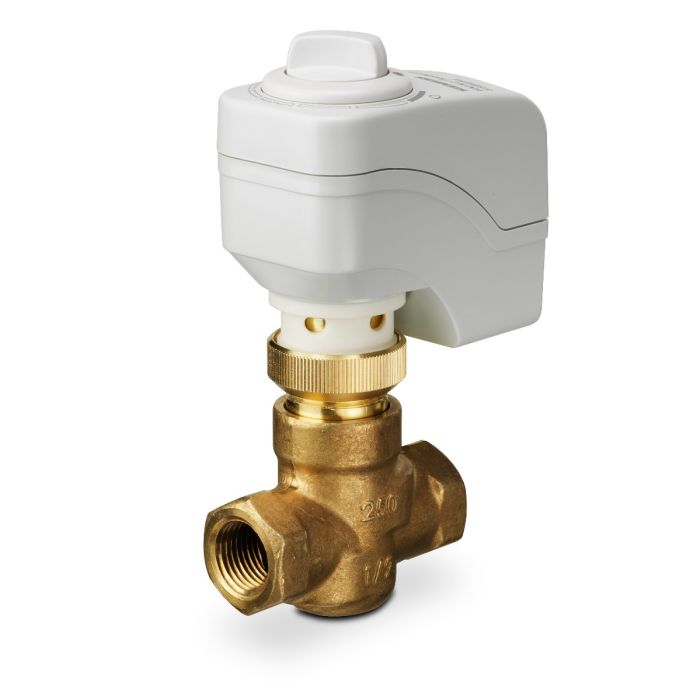

Siemens 254-01114 Globe valve assembly 24 VAC (1 in.) 599-01114

Product Description

Siemens 254-01114 is a two-way globe valve assembly with a direct-coupled electromechanical actuator for hydronic control. It provides a 10 Cv flow capacity with brass trim, a 200 N non-spring return actuator using floating (3-position) control, and operates on 24 VAC consuming 0.8 VA. The normally closed valve features NPT connections, NEMA 1 housing, ANSI Class 250 rating, and is suitable for water and glycol solutions up to 50% within 34 F to 122 F.

• Two-way globe valve, 1 in. size with NPT connection and 10 Cv flow coefficient
• Direct-coupled electromechanical actuator, 200 N thrust, non-spring return, floating (3-position) control, 24 VAC, 0.8 VA
• Brass trim, close-off pressure 30 psi, modified equal-percentage flow characteristic, suitable for water and glycol up to 50%

Product Highlights

1 in two-way globe valve, Cv 10, 24 VAC actuator (200 N), brass trim, ANSI Class 250

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 254-01114
• Country of Origin: United States of America

Technical Specifications

• Manufacturer: Siemens
• Manufacturer Part Number: 254-01114
• Alternate Part Number: 599-01114
• Series: MZ Series / Powermite 599 MZ Series
• Valve Type: Globe
• Valve Pattern: 2-way
• Size: 1 in.
• Connection: NPT
• Flow Coefficient (Cv): 10
• Trim Material: Brass
• Actuator Type: Direct-coupled electromechanical
• Actuator Force: 200 N
• Return Type: Non-spring return
• Control Signal: Floating (3-position)
• Input Voltage: 24 VAC
• Power Consumption: 0.8 VA
• Close-Off Pressure: 30 psi
• Flow Characteristic: Modified equal-percentage
• Service Medium: Water; Glycol solutions up to 50%
• Operating Temperature: 34 F to 122 F (1 C to 50 C)
• Electrical Connection: Terminal block for plenum cable
• Enclosure Rating: NEMA 1
• ANSI Class: 250
