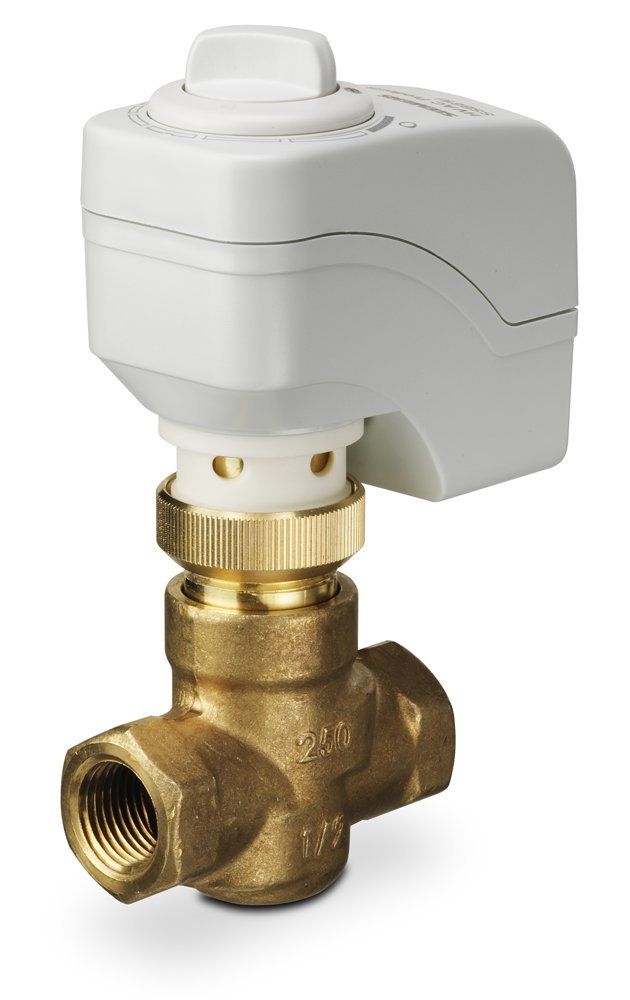

Siemens 254-01102 Zone Control Valve Assembly ANSI 250 2-Way Normally Closed Linear 1/2-Inch Female NPT Connections 0.63 Cv 200N Electro-Mechanical

Product Description

The Siemens 254-01102 Zone Control Valve Assembly is designed for robust performance in controlling water flow within HVAC systems. This assembly features a 2-way, normally closed valve with 1/2 inch female NPT connections and is optimal for applications requiring precise water flow control.

• Manufactured in the United States, ensuring high quality and reliability.
• ANSI Class 250 rating with a flow coefficient (Cv) of 0.63 enabling efficient fluid control.
• Includes an MZ Series SSB81U actuator that supports 3-position, fail-in-place functionality.

Product Highlights

The valve's equal percentage flow characteristics and forged brass body offer excellent durability and performance. Its brass trim and electro-mechanical operation make it suited for environments requiring tight control over water flow. The compact valve design is engineered to fit seamlessly into various HVAC setups, enhancing system efficiency and reliability.

Product Information

Standard Information

• Brand: Siemens
• MPN: 254-01102

Technical Specifications

• Valve Type: 2-way, normally closed
• Connection Type: Female NPT
• Body Material: Forged brass
• Actuator Type: Non-spring return floating
• Control Signal: 2-10 Vdc, 4-20mA
• Power Supply: 24Vac
• Pressure Rating: ANSI 250
• Flow Coefficient: 0.63 Cv
